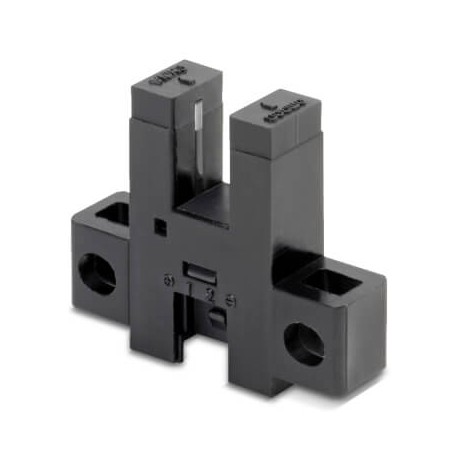

OMRON EE-SX970-C1 EE-SX970-C1 EESX2132B EESX970C1 OMRON Horseshoe 5mm Vert NPN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX970-C1 EESX2132B EESX970C1 OMRON Horseshoe 5mm Vert NPN

EE-SX970-C1

EESX2132B

EESX970C1

OMRON

10 Pcs.

Horseshoe 5mm Vert NPN Photomicro sensor, slot type, standard-shape, 5 mm, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A horseshoe 5mm vert npn (EE-SX970-C1) manufactured by Omron serves as a dependable optical sensor built for detecting mechanical limits, part presence, and rotational triggers in factory machinery. Engineers select these slotted units for straightforward integration into control panels and moving mechanisms requiring accurate non-contact feedback. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Flat plug-in connection
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeStraightSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)26 mmProduct Height (unpacked)22 mmProduct Depth (unpacked)7 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
