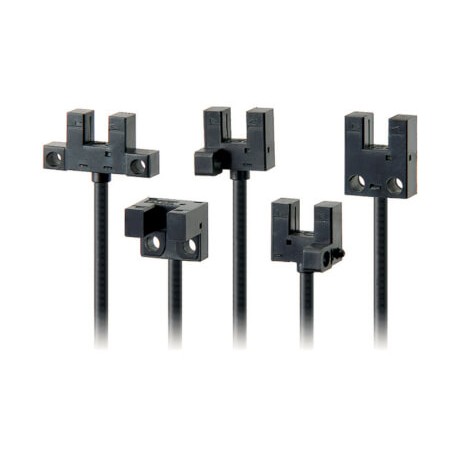

OMRON EE-SX951-R 3M EE-SX951-R 3M EESX2230B EESX951R3M OMRON Photo micro sensor, slot type, NPN, 3m robotic cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX951-R 3M EESX2230B EESX951R3M OMRON Photo micro sensor, slot type, NPN, 3m robotic cable

EE-SX951-R 3M

EESX2230B

EESX951R3M

OMRON

1 Pcs.

Photo micro sensor, slot type, NPN, 3m robotic cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron EE-SX951-R 3M photo micro sensor is a slot-type optical detection device engineered for precise object and position identification in automated equipment. Industrial slot sensors are widely integrated into assembly lines and material handling systems to track items, verify limits, and monitor mechanical travel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Through-beam with slot: 5 mm (slot width) (Infrared light)
  • L-shaped: EE-SX951-W 1M
  • F-shaped: EE-SX952-W 1M
  • R-shaped: EE-SX953-W 1M
  • U-shaped: EE-SX954-W 1M
  • Slot depth: 6.5 mm
  • Standard sensing object: Opaque: 1.8 × 0.8 mm min.
  • Light source (wave length): Infrared LED (940 nm)
  • Sensing distance (slot width): 5 mm
  • Power supply voltage: 5 to 24 VDC ±10%, ripple (p-p): 10% max.
  • Protective circuits: Load short-circuit protection
  • Response frequency: 1 kHz min. (3 kHz average)
  • Ambient temperature: Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)
  • Degree of protection: IEC60529 IP50
  • Material: Case; Lens: Polycarbonate

More info

▲
Features

Ultra-compact fork shape Photomicrosensor

The small sized photo microsensors are ideally suited for the detection of machine parts where space is crucial.

  • Mounting with M3 or M2 screws
  • Bright indicator LEDs for high visibility from many directions.
  • Antivalent output (L-ON/D-ON)
  • Load short-circuit protection circuit

Deep slot

ee-sx95 feature prod

Deep slot of 6.5 mm allows higher tolerances in mechanical design.

Ordering information

Sensor type

Sensing distance

Connection method

Operation mode

Shape1

Order code2





NPN output

PNP output

Through-beam with slot

5 mm
(slot width)
(Infrared light)

−

−

1 m3

−

Light-ON

Dark-ON

(2 outputs)

Standard


EE-SX950-W 1M

EE-SX950P-W 1M

L-shaped


EE-SX951-W 1M

EE-SX951P-W 1M

F-shaped


EE-SX952-W 1M

EE-SX952P-W 1M

R-shaped


EE-SX953-W 1M

EE-SX953P-W 1M

U-shaped


EE-SX954-W 1M

EE-SX954P-W 1M

Specifications

Item

Through-beam

Standard

L-shaped

F-shaped

R-shaped

U-shaped

NPN

EE-SX950-W 1M

EE-SX951-W 1M

EE-SX952-W 1M

EE-SX953-W 1M

EE-SX954-W 1M

PNP

EE-SX950P-W 1M

EE-SX951P-W 1M

EE-SX952P-W 1M

EE-SX953P-W 1M

EE-SX954P-W 1M

Slot depth

6.5 mm

Standard sensing object

Opaque: 1.8 × 0.8 mm min.

Light source (wave length)

Infrared LED (940 nm)

Sensing distance (slot width)

5 mm

Power supply voltage

5 to 24 VDC ±10%, ripple (p-p): 10% max.

Protective circuits

Load short-circuit protection

Response frequency

1 kHz min. (3 kHz average)

Ambient temperature

Operating: −25 to +55°C, Storage: −30 to +80°C (with no icing or condensation)

Degree of protection

IEC60529 IP50

Material

Case

PBT (Polybutylene terephthalate)

Lens

Polycarbonate


1.For detailed shape dimensions refer to datasheet on industrial.omron.eu
2.For 1-m robot cable please exchange “W” by “R” in order code (Example: EE-SX950-R 1M)
3.3 m models are available on request. Please contact your OMRON representative.
