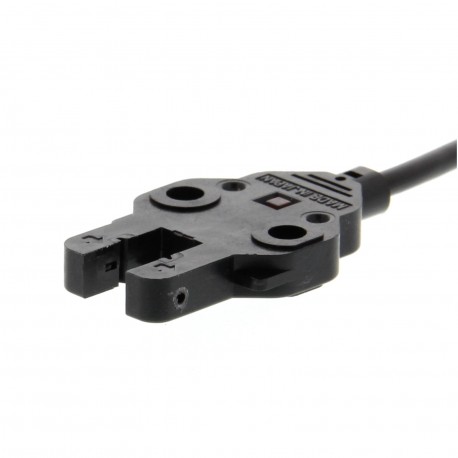

OMRON EE-SX870 2M EE-SX870 2M EESX1621C EESX8702M OMRON Horseshoe miniature 5mm Light NPN Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX870 2M EESX1621C EESX8702M OMRON Horseshoe miniature 5mm Light NPN Cable 2m

EE-SX870 2M

EESX1621C

EESX8702M

OMRON

1 Pcs.

Horseshoe miniature 5mm Light NPN Cable 2m Photomicro sensor, slim, Standard-shape, indicator incident light on, L-on, NPN, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX870 2M horseshoe miniature sensor delivers high-speed optical detection for confined spaces within complex automated systems. Miniature slot sensors are commonly integrated into small parts handlers and printers to verify the precise position of components. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Shape: Straight
  • Sensing method: Through-beam with slot
  • Sensing distance: 5 mm
  • Setting method: Fixed
  • Connection method: Cable
  • Cable length: 2 m
  • Output type: NPN
  • Operation mode: Light-ON
  • Response time: 0.17 ms
  • Material housing: PBT
  • Type of light: Infrared light
  • Power supply voltage: 5-24 V
  • Voltage type: DC
  • Construction type housing: Special construction
  • Material of optical surface: Plastic
  • Sensing mode: Light switching

More info

▲

Specifications

ShapeStraight
Sensing methodThrough-beam with slot
Sensing distance5 mm
Setting methodFixed
Connection methodCable
Cable length2 m
Output typeNPN
Operation modeLight-ON
Response time0.17 ms
Material housingPBT
Thread sizeOther
Type of lightInfrared light
Power supply voltage5-24 V
