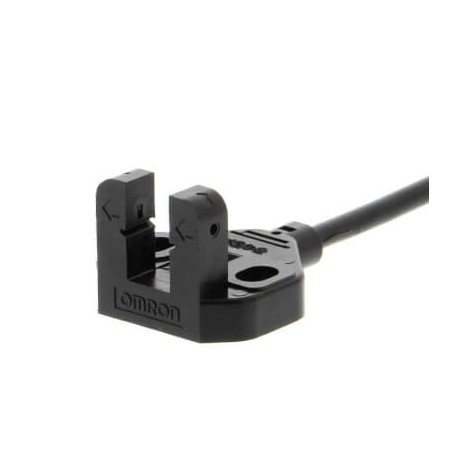

OMRON EE-SX771P EE-SX771P EESX1653A EESX771P OMRON Horseshoe 5mm Vert PC-Board Osc PNP Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX771P EESX1653A EESX771P OMRON Horseshoe 5mm Vert PC-Board Osc PNP Cable 2m

EE-SX771P

EESX1653A

EESX771P

OMRON

10 Pcs.

Horseshoe 5mm Vert PC-Board Osc PNP Cable 2m Photomicro sensor, slim, 5 mm slot, L-shaped, indicator incident light on, D-on, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A vertical PC-board horseshoe sensor like the Omron EE-SX771P is designed for direct integration onto circuit boards and equipment chassis to monitor rotational speeds, small component presence, or mechanical travel limits. Such photoelectric switches support reliable tracking in diverse motion control setups and electronic assembly devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Dark switching
  • Type of switch function (EF003963): Breaker contact (NC)
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeL-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeDark-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)18 mmProduct Height (unpacked)13.3 mmProduct Depth (unpacked)21 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
