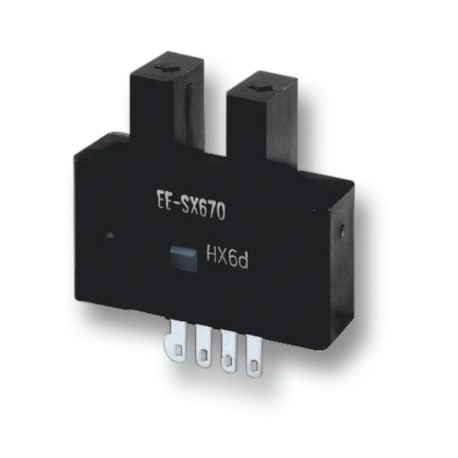

OMRON EE-SX675P EE-SX675P EESX2268M EESX675P,1 OMRON Horseshoe 5mm Light/Osc. Select. PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX675P EESX2268M EESX675P,1 OMRON Horseshoe 5mm Light/Osc. Select. PNP

EE-SX675P

EESX2268M

EESX675P.1

OMRON

10 Pcs.

Horseshoe 5mm Light/Osc. Select. PNP

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX675P horseshoe sensor is an optical T-shaped component utilized for reliable position tracking, edge detection, and mechanical referencing. Through-beam optical sensors are fundamental in automated lines for detecting interruptions in light paths caused by moving workpieces. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Through-beam with slot: 5 mm (slot width) (Infrared light)
  • L-shaped: EE-SX671
  • T-shaped, 7 mm: EE-SX672
  • Close-mounting: EE-SX673
  • Close-mounting: EE-SX674
  • T-shaped, 10 mm: EE-SX675
  • F-shaped: EE-SX676
  • R-shaped: EE-SX677
  • Sensing distance: 5 mm (slot width)
  • Power supply voltage: 5 to 24 VDC ±10%, ripple (p-p): 10% max.
  • Response frequency: 1 kHz min. (3 kHz average)
  • Ambient temperature: Operating: -25 to 55°C, Storage: -30 to 80°C
  • Degree of protection: IEC60529 IP50
  • Material: Case
  • Lens: Polycarbonate
  • Connector with Cable: 2 m

More info

▲
Features

Photo microsensor in plastic fork shape housing

For smaller size see the EE-SX95. For larger fork size sensors see the E3Z-G.

  • Response frequency up to 1 kHz
  • Wide operating voltage range: 5 to 24 VDC

Ordering information

Connector models

Sensor type

Sensing distance

Connection method

Operation Mode

Shape1

Order code2

NPN output

PNP output

Through-beam with slot

5 mm
(slot width)
(Infrared light)

Connector (4 pin)3

Dark-ON/Light-ON
(selectable)


EE-SX670

EE-SX670P


EE-SX671

EE-SX671P

T-shaped, 7 mmEE-SX47_67_rev01-4.png

EE-SX672

EE-SX672P


EE-SX673

EE-SX673P


EE-SX674

EE-SX674P

T-shaped, 10 mmEE-SX47_67_rev01-7.png

EE-SX675

EE-SX675P


EE-SX676

EE-SX676P


EE-SX677

EESX-677P

Specifications

Item

Through-beam

Standard

L-shaped

T-shaped,
slot center: 7 mm

Close-mounting

T-shaped,
slot center: 10 mm

F-shaped

R-shaped

NPN

EE-SX670

EE-SX671

EE-SX672

EE-SX673

EE-SX674

EE-SX675

EE-SX676

EE-SX677

PNP

EE-SX670P

EE-SX671P

EE-SX672P

EE-SX673P

EE-SX674P

EE-SX675P

EE-SX676P

EE-SX677P

Sensing distance

5 mm (slot width)

Power supply voltage

5 to 24 VDC ±10%, ripple (p-p): 10% max.

Response frequency

1 kHz min. (3 kHz average)

Ambient temperature

Operating: -25 to 55°C, Storage: -30 to 80°C

Degree of protection

IEC60529 IP50

Material

Case

PBT (polybutylene terephthalate)

Lens

Polycarbonate

Accessories (order separately)

Type

Cable length

Material

Order code

Connector with Cable

2 m

PVC

EE-1010 2M

Connector with Robot Cable

2 m

PVC

EE-1010R 2M

Note:For mechanical limit switches see pageRefer to Mechanical sensors/Limit switches



1.For shape dimensions refer to datasheet on www.industrial.omron.eu

2.For pre-wired models with 1 m cable add '-WR' to order reference (e.g. EE-SX670-WR)

3.Order connector separately from accessories
