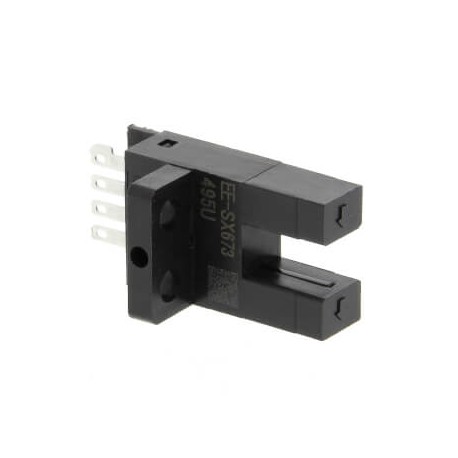

OMRON EE-SX673R EE-SX673R EESX2262M EESX673R,1 OMRON Horseshoe small 5mm Light/Osc select. LED dark PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX673R EESX2262M EESX673R,1 OMRON Horseshoe small 5mm Light/Osc select. LED dark PNP

EE-SX673R

EESX2262M

EESX673R.1

OMRON

10 Pcs.

Horseshoe small 5mm Light/Osc select. LED dark PNP Photo micro sensor, slot type, Close-mounting, L-ON/D-ON selectable, PNP, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX673R is a compact horseshoe sensor deployed in production equipment for accurate edge detection, part counting, and limit monitoring. Optical slot switches provide dependable switching feedback by sensing obstructions within their detection slot. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeClose-mountingSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typePNPOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.4 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)12.8 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
