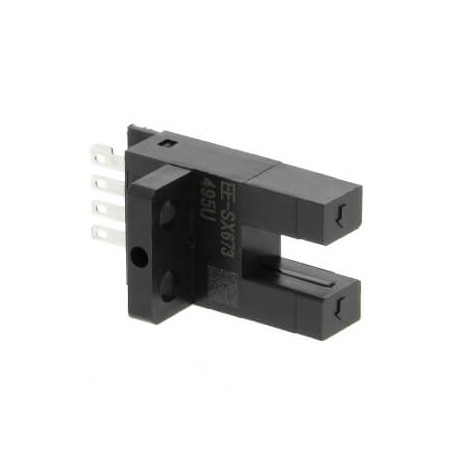

OMRON EE-SX673A EE-SX673A EESX2260D EESX673A,1 OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX673A EESX2260D EESX673A,1 OMRON Horseshoe 5mm Vert PC-Board

EE-SX673A

EESX2260D

EESX673A.1

OMRON

50 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, slot type, Close-mounting, L-ON/D-ON selectable, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A slot-type photoelectric switch like the Omron EE-SX673A serves as a compact component in automated machinery for edge detection, rotational speed monitoring, and precise limit sensing. By projecting an infrared beam across an integrated gap, the unit detects objects interrupting the optical path and translates that physical movement into an electrical signal.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeClose-mountingSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.4 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)12.8 mmType of lightInfrared lightSupply voltage DC5-24 V
