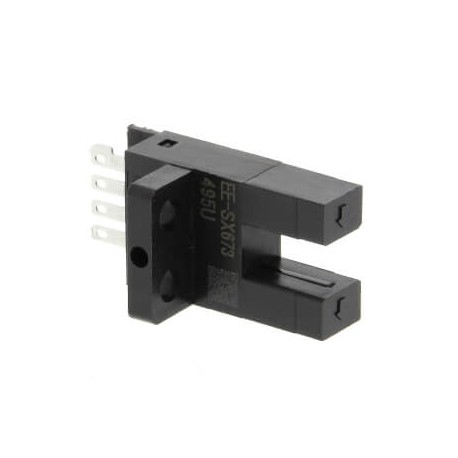

OMRON EE-SX673 EE-SX673 EESX2259M EESX673,1 OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX673 EESX2259M EESX673,1 OMRON Horseshoe 5mm Vert PC-Board

EE-SX673

EESX2259M

EESX673.1

OMRON

100 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, slot type, Close-mounting, L-ON/D-ON selectable, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron EE-SX673 horseshoe sensor is a specialized photoelectric component used in industrial automation for precise object detection, edge positioning, and rotational counting in machinery. These slot-type optical switches rely on an uninterrupted infrared beam to detect the presence of components passing through the sensing gap, providing reliable feedback to control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP50
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light-/dark switching
  • Type of switch function: Programmable/configurable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeClose-mountingSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.4 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)12.8 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
