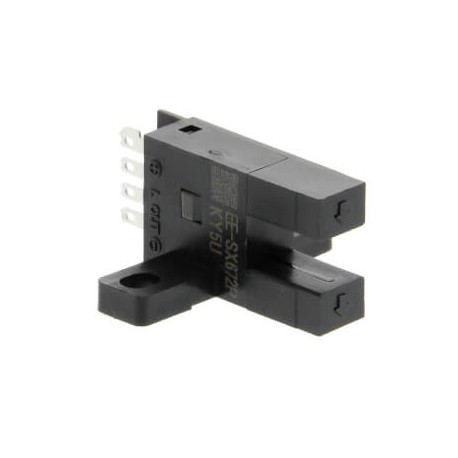

OMRON EE-SX672 EE-SX672 EESX2255H EESX672,1 OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX672 EESX2255H EESX672,1 OMRON Horseshoe 5mm Vert PC-Board

EE-SX672

EESX2255H

EESX672.1

OMRON

50 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, slot type, T-shaped, L-ON/D-ON selectable, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a durable plastic housing, the Omron EE-SX672 horseshoe PC-board sensor provides precise optical break detection for industrial control circuits. Circuit designers rely on these components to monitor moving elements, establish reference points, and ensure accurate sequencing in automated devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP50
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light-/dark switching
  • Type of switch function: Programmable/configurable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeT-shaped, 7 mmSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)13.7 mmProduct Height (unpacked)26 mmProduct Depth (unpacked)26 mmType of lightInfrared lightSupply voltage DC5-24 V
