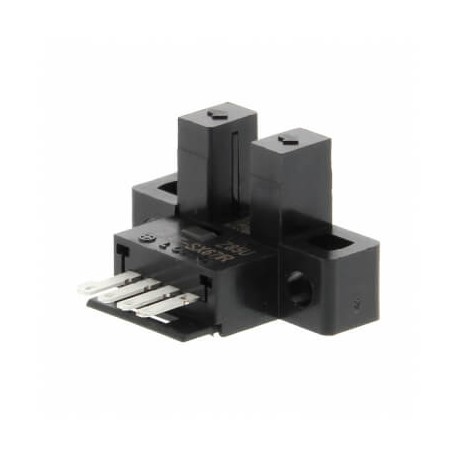

OMRON EE-SX671A EE-SX671A EESX2252C EESX671A OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX671A EESX2252C EESX671A OMRON Horseshoe 5mm Vert PC-Board

EE-SX671A

EESX2252C

EESX671A

OMRON

50 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, slot type, L-shaped, L-ON/D-ON selectable, NPN, connector

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A horseshoe 5mm vert pc-board (EE-SX671A) from Omron functions as a compact slotted optical switch designed for precise edge detection, counting, and limit sensing on circuit boards or mechanical assemblies. Industrial engineers integrate these components into automated equipment to accurately track rotational speed or small parts passing through the optical slot. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With communication interface RS-232 (EF007312): No

More info

▲
ShapeL-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodSystem connectorOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)26.2 mmProduct Height (unpacked)15.5 mmProduct Depth (unpacked)18.3 mmType of lightInfrared lightSupply voltage DC5-24 V
