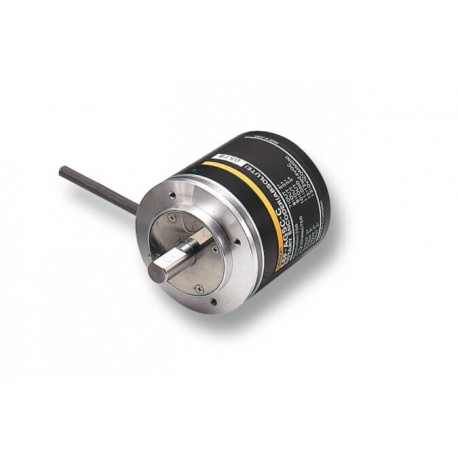

E6F-AG5B 256 2M E6F 1024M E6FAG5B2562M OMRON All 256ppr Gray PNP 12-24vdc, Cable 2m
E6F-AG5B 256 2M
E6F 1024M
E6FAG5B2562M
OMRON
1 Pcs.
Automation > Rotary encoder
E6F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Utilizing optic measurement principles, the Omron E6F-AG5B 256 2M absolute encoder provides accurate angular position data for heavy-duty industrial positioning tasks. These absolute encoders are commonly mounted on rotating shafts in manufacturing lines and servo drives to maintain absolute position tracking even after power cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP65
- Model (EF000010): Absolute encoder
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
- Type of shaft encoder (EF006968): Full shaft
- Programmable (EF000841): No
- Max. pulses per revolution (EF003589): 256
- Construction size (EF012282): 60 mm
- Diameter axle (EF007110): 9 mm
- Impulse rate per cycle (EF007289): 20000
- Number of steps per revolution (EF006938): 256
- Number of revolutions (EF006943): 5000
More info
▲- Stronger shaft and higher durability (120 N in radial direction and 50 N in thrust direction) than previous E6F Encoders
- Drip-proof construction meets IP64F standards
- High-resolution models (1024 pulses max. per revolution)
- Faster response for high-speed control applications (grey code: 20 kHz)
