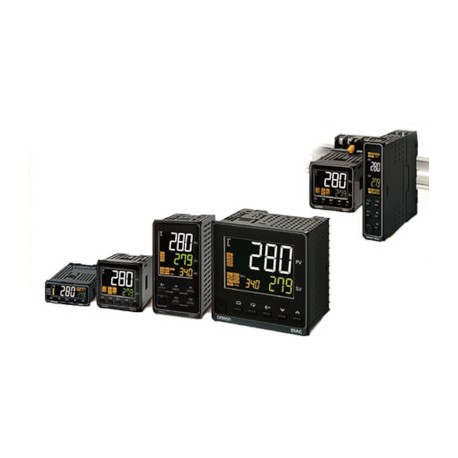

OMRON E5CC-RX3A5M-007 E5CC-RX3A5M-007 E5CC3510H E5CCRX3A5M007OMI OMRON Temperature controller, 1/16 DIN (48 x 48 mm), 1 relay outp.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-RX3A5M-007 E5CC3510H E5CCRX3A5M007OMI OMRON Temperature controller, 1/16 DIN (48 x 48 mm), 1 relay outp..

E5CC-RX3A5M-007

E5CC3510H

E5CCRX3A5M007OMI

OMRON

1 Pcs.

Temperature controller, 1/16 DIN (48 x 48 mm), 1 relay output, 3 AUX, 2 inputs for event, set point is remote, 100-240v AC Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, 2 Event input, Remote Setpoint, 100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM for 689414 Relays (EC001446)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) AC
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC
Error registration possible (EF003423) No
External reset possible (EF003426) No
With detachable clamps (EF003340) No
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 3
Width (EF000008) 48 mm
Number of contacts as normally closed contact (EF008255) 0
Number of measuring circuits (EF003425) 1
Height (EF000040) 48 mm
Depth (EF000049) 73 mm
Supply voltage AC 50 Hz (EF007532) 100 V
Temperature measuring range (EF009788) -200 °C
Supply voltage AC 60 Hz (EF007533) 100 V
