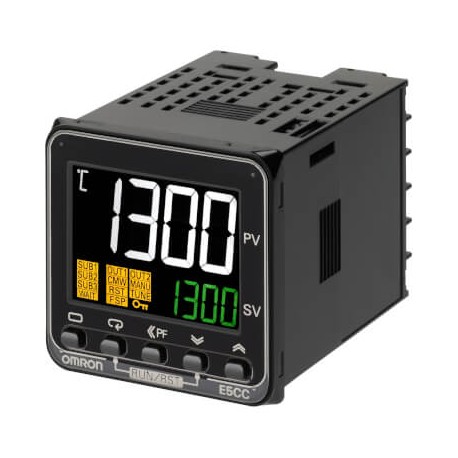

OMRON E5CC-RX3A5M-006 E5CC-RX3A5M-006 E5CC3508F 689412 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 1 Relay Output, 3 AUX,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-RX3A5M-006 E5CC3508F 689412 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 1 Relay Output, 3 AUX,..

E5CC-RX3A5M-006

E5CC3508F

E5CCRX3A5M006OMI

OMRON

1 Pcs.

Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, 2 Event input, Transfer output, 100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Executing precise temperature regulation with reliable relay switching is accomplished through the Omron E5CC-RX3A5M-006 temperature controller. Standard units like this are utilized throughout factory automation to govern thermal zones in ovens, packaging equipment, and molding machines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Features: Transfer output
  • Number of event inputs: 2
  • Number of alarm outputs: 3
  • Supply voltage AC: 100-240 V
  • Control output: Relay
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
FeaturesTransfer output
Number of event inputs2
Number of alarm outputs3
Supply voltage AC100-240 V
Control outputRelay
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
