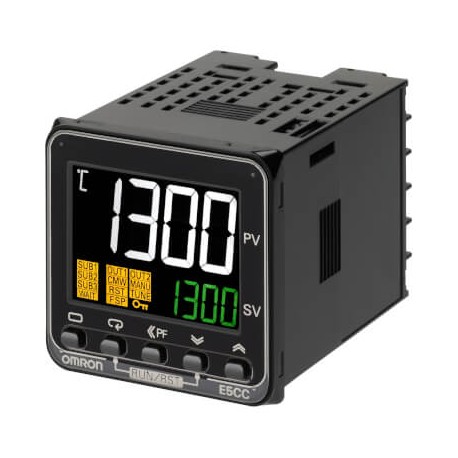

OMRON E5CC-QX2ASM-000 E5CC-QX2ASM-000 E5CC4036E 689400 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 12 VDC Pulse Output, 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CC-QX2ASM-000 E5CC4036E 689400 OMRON Temperature Controller, 1/16 DIN (48 x 48 mm), 12 VDC Pulse Output, 2..

E5CC-QX2ASM-000

E5CC4036E

E5CCQX2ASM000OMI

OMRON

1 Pcs.

Temperature controller, 1/16 DIN (48x48 mm), 12 VDC pulse output, 2 AUX, No cover, 100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Managed through precision engineering, the Omron E5CC-QX2ASM-000 temperature controller provides accurate regulation for industrial thermal processes. Industrial temperature controllers receive signals from sensors like thermocouples or RTDs, comparing the real-time thermal state against a setpoint to modulate heating or cooling elements inside control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 2
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs2
Supply voltage AC100-240 V
Control outputVoltage pulse
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
