View larger
Images are for illustrative purposes only. Please refer to data sheet for details

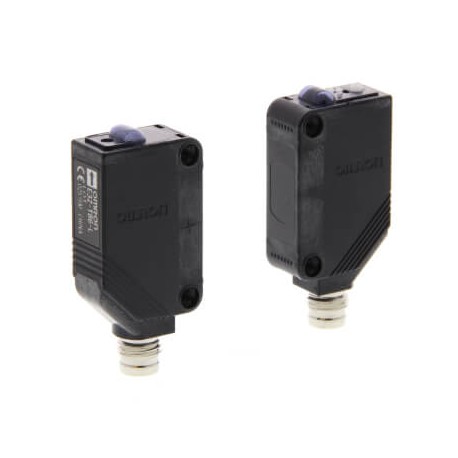

E3Z-T66 E3Z 4042A E3ZT66OMI OMRON Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 ..
E3Z-T66
E3Z 4042A
E3ZT66OMI
OMRON
1 Pcs.
Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, M8 4-pin connector
Automation > Through beam photoelectric sensor
E3Z
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboidSensing methodThrough-beamSensing distance15000 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightInfrared lightPower supply voltage12-24 VDegree of protection (IP)IP67
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Material of optical surface (EF004134) | Plastic |
| Type of interface for safety communication (EF003956) | Other |
| Housing material (EF001596) | Plastic |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Laser protection class (EF004027) | None |
| Setting procedure (EF003994) | Manual adjustment |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Connector M8 |
| Type of light (EF004029) | Infrared light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | NPN |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With communication interface AS-Interface (EF007306) | No |
| With restart blockage (EF004054) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| With communication interface DeviceNet (EF007308) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface RS-422 (EF007313) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With other analogue output (EF007485) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Max. opening angle (EF002642) | 15 ° |
| Height of sensor (EF007283) | 32.2 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 15000 mm |
| AWG-number (EF007010) | 24 |
| Wavelength of the sensor (EF004132) | 870 nm |
| Response time (EF004094) | 1 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 10.8 mm |
| Rated switching distance (EF008289) | 15000 mm |
| Max. output current (EF001315) | 100 mA |
| Length of sensor (EF007334) | 20 mm |
| Rated control supply voltage DC (EF003980) | 12 V |
| Ambient temperature (EF002386) | -25 °C |
