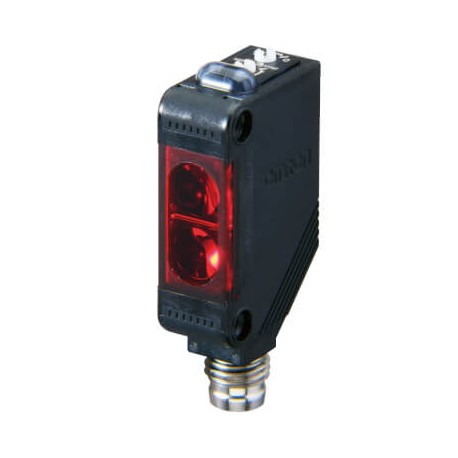

OMRON E3Z-R86-IL3 E3Z-R86-IL3 E3Z 8019R E3ZR86IL3OMS OMRON Ecological cc 3h Mirror 4m PNP M8 IO LINK COM3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-R86-IL3 E3Z 8019R E3ZR86IL3OMS OMRON Ecological cc 3h Mirror 4m PNP M8 IO LINK COM3

E3Z-R86-IL3

E3Z 8019R

E3ZR86IL3OMS

OMRON

1 Pcs.

Ecological cc 3h Mirror 4m PNP M8 IO LINK COM3 Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 4-pin connector

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron ecological cc 3h mirror photoelectric sensor, item E3Z-R86-IL3, is deployed in industrial environments to monitor production lines, detect passing goods, and manage automated material routing. Retroreflective units rely on a target reflector to complete the optical circuit, triggering outputs instantly when an object obstructs the sensing path.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP67
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Cuboid
  • Setting procedure: Parameterization
  • Sensing mode: Light-/dark switching
  • Type of switch function: Programmable/configurable
  • Type of electric connection: Connector M8
  • Type of light: Polarized red light
  • Type of switching output: PNP
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance4000 mmSensing distance (min.)100 mmSetting methodIO-Link, Manual adjustmentConnection methodConnector M8 - 4 pinOutput typeIO-Link, PNPOperation modeDark-ON, Light-ONIO-Link baud rateCOM3 (230.4 kbps)Response time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R.Degree of protection (IP)IP67
