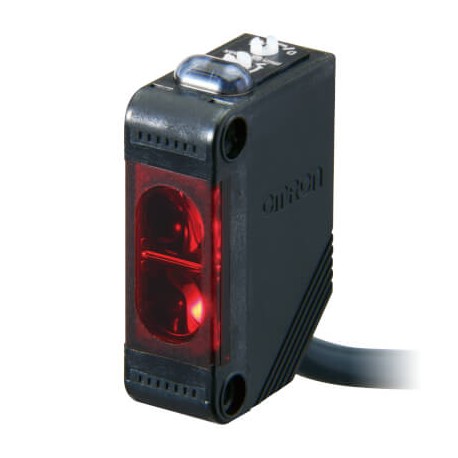

OMRON E3Z-R81-IL3 5M E3Z-R81-IL3 5M E3Z 8015F E3ZR81IL35MOMS OMRON Ecological cc 3h Mirror 4m PNP Cable 5m IO LINK COM3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-R81-IL3 5M E3Z 8015F E3ZR81IL35MOMS OMRON Ecological cc 3h Mirror 4m PNP Cable 5m IO LINK COM3

E3Z-R81-IL3 5M

E3Z 8015F

E3ZR81IL35MOMS

OMRON

1 Pcs.

Ecological cc 3h Mirror 4m PNP Cable 5m IO LINK COM3 Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m cable

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron photoelectric sensor, part number E3Z-R81-IL3 5M, functions as an advanced optical detection device for automated machinery and industrial control loops. These units deliver precise presence sensing and data communication capabilities to modern smart manufacturing and assembly lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Parameterization
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance4000 mmSensing distance (min.)100 mmSetting methodIO-Link, Manual adjustmentConnection methodCableCable length5 mOutput typeIO-Link, PNPOperation modeDark-ON, Light-ONIO-Link baud rateCOM3 (230.4 kbps)Response time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R.Degree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
