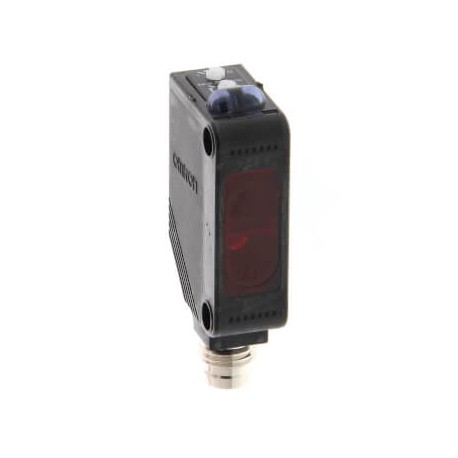

OMRON E3Z-D86 E3Z-D86 E3Z 4059F E3ZD86OMI OMRON Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, ..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-D86 E3Z 4059F E3ZD86OMI OMRON Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, ..

Name: E3Z-D86 E3Z 4059F E3ZD86OMI OMRON Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, ..
Brand: OMRON
SKU: E3Z 4059F

Reference: E3Z-D86

Code: E3Z 4059F

Catalog Number: E3ZD86OMI

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, M8 4-pin connector

Categories:
Automation > Diffuse reflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron photoelectric sensor model E3Z-D86 utilizes diffuse reflection to detect targets in industrial automation environments. Such sensors are widely deployed for non-contact object sensing, sorting verification, and general conveyor automation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

Degree of protection (IP) (EF005474): IP67
Material of optical surface (EF004134): Plastic
Housing material (EF001596): Plastic
Operation agent-safety class (EF003982): Safety class 3
Voltage type (EF000187): DC
Construction type housing (EF004008): Cuboid
Setting procedure (EF003994): Manual adjustment
Sensing mode (EF007503): Light-/dark switching
Type of switch function (EF003963): Programmable/configurable
Type of electric connection (EF003961): Connector M8
Type of light (EF004029): Infrared light
Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
Type of switching output (EF003962): PNP
With communication interface RS-485 (EF007314): No
With communication interface SSD (EF007315): No
With communication interface SSI (EF007316): No

More info

▲

ShapeCuboidSensing methodDiffuse reflectiveSensing distance100 mmSensing distance (min.)5 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesWide beamDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.

View PDF Download
