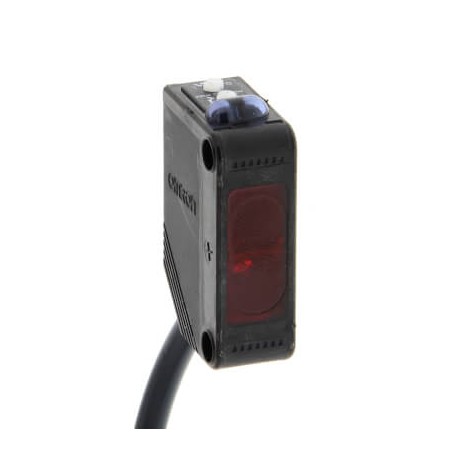

OMRON E3Z-D81 5M E3Z-D81 5M E3Z 7036C E3ZD815MOMS OMRON Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-D81 5M E3Z 7036C E3ZD815MOMS OMRON Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, ..

E3Z-D81 5M

E3Z 7036C

E3ZD815MOMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, 5 m cable

Automation > Diffuse reflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3Z-D81 5M is a rectangular diffuse photoelectric sensor built to deliver dependable object detection in factory automation frameworks. Such sensors provide accurate status feedback by sensing light reflections off targets, helping automate material handling and sorting operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodDiffuse reflectiveSensing distance100 mmSensing distance (min.)5 mmSetting methodManual adjustmentConnection methodCableCable length5 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesWide beamDegree of protection (IP)IP67
