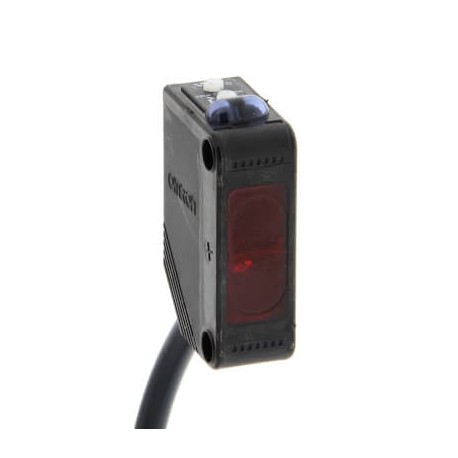

OMRON E3Z-D61 5M E3Z-D61 5M E3Z 7035E E3ZD615MOMS OMRON Photoelectric sensor, rectangular housing, stainless steel, Diffuse R.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-D61 5M E3Z 7035E E3ZD615MOMS OMRON Photoelectric sensor, rectangular housing, stainless steel, Diffuse R..

E3Z-D61 5M

E3Z 7035E

E3ZD615MOMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, stainless steel, Diffuse Red LED, 100 mm, NPN, on/off, 5 m cable Photoelectric sensor, rectangular housing, red LED, diffuse, 100 mm, NPN, Light-ON/Dark-ON, 5 m cable

Automation > Diffuse reflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Photoelectric sensor, rectangular housing, stainless steel, Diffuse R. (E3Z-D61 5M) is utilized in automated systems to reliably detect object presence, position, or distance without physical contact. These optical devices project a light beam toward a target and measure the returned reflection to trigger control logic in machinery or conveyor lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodDiffuse reflectiveSensing distance100 mmSensing distance (min.)5 mmSetting methodManual adjustmentConnection methodCableCable length5 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesWide beamDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
