View larger
Images are for illustrative purposes only. Please refer to data sheet for details

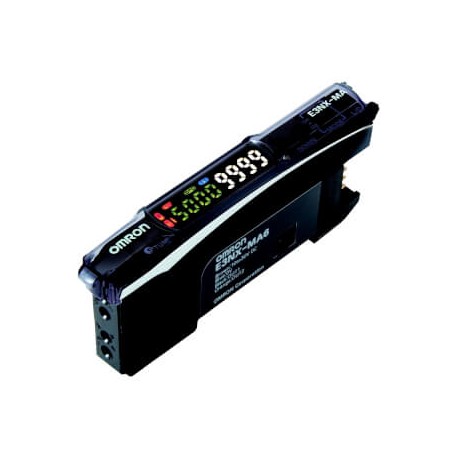

E3NX-MA8 E3NX7026C E3NXMA8OMS OMRON Amplifier fiber 2 input fiber, digital display, double, fit, smart, mult..
E3NX-MA8
E3NX7026C
E3NXMA8OMS
OMRON
1 Pcs.
Amplifier fiber 2 input fiber, digital display, double, fit, smart, multiple functions, 2 PNP outputs, connector system
Fiber amplifier, 2 fiber input, twin digital display, smart tuning, multiple functions, 2 PNP output, system connector
Automation > Optical fibre sensor / optical fibre amplifier
N-Smart
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodTeach-InConnection methodSystem connectorOutput typePNPOperation modeDark-ON, Light-ONResponse time0.1 msMaterial housingPolycarbonateProduct Width (unpacked)10 mmProduct Height (unpacked)33.5 mmProduct Length (unpacked)75.3 mmType of lightPolarity free red lightPower supply voltage10-30 VFunctionsSelf-diagnosis, Timer, TwinFeatures2 channels, Bank function, Twin outputsApplicationObject detectionDegree of protection (IP)IP50Number of digital outputs2Number of digital inputs0
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP50 |
| Setting procedure (EF003994) | Other |
| Indication (EF000350) | Digital |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable with connector |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarized red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | Yes |
| AWG-number (EF007010) | 24 |
| No-load current (EF004028) | 0.1 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height amplifier (EF007284) | 33.50 mm |
| Length amplifier (EF007335) | 75.3 mm |
| Max. output current (EF001315) | 100 mA |
| Switching frequency (EF003587) | 5000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 2 |
| Width amplifier (EF007095) | 10 mm |
| Rated control supply voltage DC (EF003980) | 10 V |
| Ambient temperature (EF002386) | -25 °C |
