> OMRON > Photoelectric sensors > E3JM > E3JM2099C

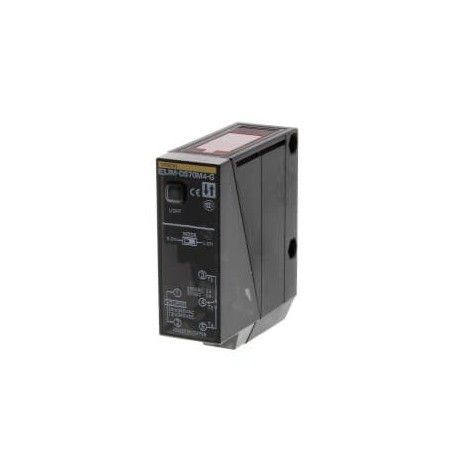

OMRON E3JM-DS70M4-G E3JM-DS70M4-G E3JM2099C E3JMDS70M4GOMS,1 OMRON Photoelectric sensor, diffuse, 700 mm, AC/DC, relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3JM-DS70M4-G E3JM2099C E3JMDS70M4GOMS,1 OMRON Photoelectric sensor, diffuse, 700 mm, AC/DC, relay

E3JM-DS70M4-G

E3JM2099C

E3JMDS70M4GOMS.1

OMRON

1 Pcs.

Photoelectric sensor, diffuse, 700 mm, AC/DC, relay

Automation > Diffuse reflective photoelectric sensor
E3JM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3JM-DS70M4-G photoelectric sensor functions as an industrial optical switch designed to detect targets without physical contact in automated control loops. Technicians integrate these versatile units into machinery to manage sorting, counting, and safety monitoring tasks by sensing interruptions in a projected light path.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP66
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 2
  • Voltage type (EF000187): AC/DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Change-over contact (NO/NC)
  • Type of electric connection (EF003961): Screw connection
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): Relay contact
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodDiffuse reflectiveSensing distance700 mmSetting methodManual adjustmentConnection methodTerminal blockOutput typeRelayOperation modeDark-ON, Light-ONResponse time30 msMaterial housingABSThread sizeOtherProduct Width (unpacked)25 mmProduct Height (unpacked)65 mmProduct Depth (unpacked)75 mmType of lightInfrared lightPower supply voltage12-240 VSupply voltage AC100-240 VSupply voltage DC24-240 VFeaturesConduit PG13.5, Multi voltage power supply

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
