> OMRON > Photoelectric sensors > E3FA / E3RA > E3FC7017M

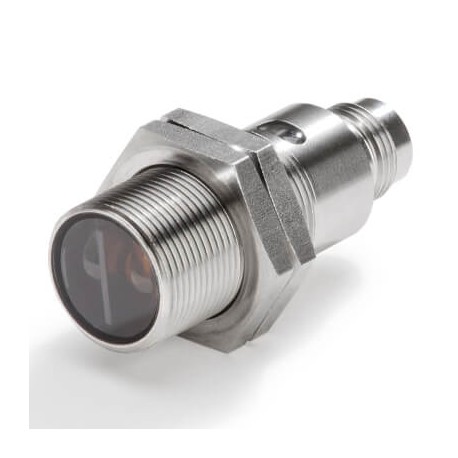

OMRON E3FC-DP22 E3FC-DP22 E3FC7017M E3FCDP22OMS OMRON Inox Reflex 300mm PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FC-DP22 E3FC7017M E3FCDP22OMS OMRON Inox Reflex 300mm PNP M12 Connector

E3FC-DP22

E3FC7017M

E3FCDP22OMS

OMRON

1 Pcs.

Inox Reflex 300mm PNP M12 Connector Photoelectric sensor, M18 threaded barrel, stainless steel, red LED, diffuse, 300 mm, PNP, Light-ON/Dark-ON, M12 connector

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for precision automation tasks, the Omron Inox Reflex 300mm PNP M12 Connector (E3FC-DP22) operates as an optical proximity switch used to identify parts, track packages, and verify process states in manufacturing lines. Photoelectric units of this type integrate transmitter and receiver optics within a compact threaded barrel to maintain consistent detection accuracy. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCylindrical axialSensing methodDiffuse reflectiveSensing distance300 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingStainless steelThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
