> OMRON > Photoelectric sensors > E3FA / E3RA > E3FC7015C

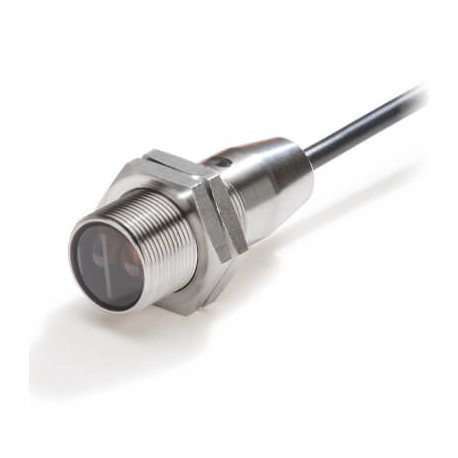

OMRON E3FC-DP15 2M E3FC-DP15 2M E3FC7015C E3FCDP152MOMS OMRON nox Reflex 300mm Infrared PNP Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FC-DP15 2M E3FC7015C E3FCDP152MOMS OMRON nox Reflex 300mm Infrared PNP Cable 2m

E3FC-DP15 2M

E3FC7015C

E3FCDP152MOMS

OMRON

1 Pcs.

nox Reflex 300mm Infrared PNP Cable 2m Photoelectric sensor, M18 threaded barrel, stainless steel, infrared LED, diffuse, 300 mm, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3FC-DP15 2M reflex infrared sensor is an optoelectronic device utilized in automated systems to detect the presence, position, or absence of objects without physical contact. These sensors play a vital role on production lines, packaging machinery, and material handling setups for reliable object tracking and sorting.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCylindrical axialSensing methodDiffuse reflectiveSensing distance300 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingStainless steelThread sizeM18Product Length (unpacked)48 mmType of lightInfrared lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
