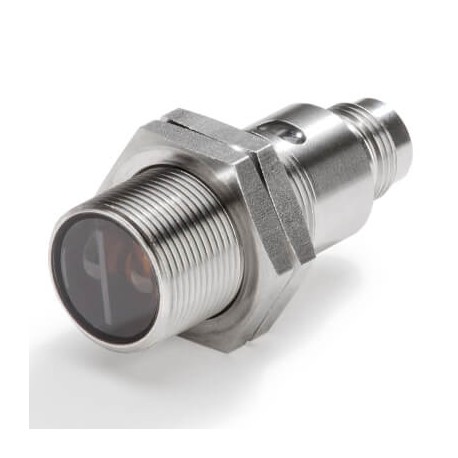

OMRON E3FC-DN22 E3FC-DN22 E3FC7008M E3FCDN22OMS OMRON Inox Reflex 300mm NPN M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FC-DN22 E3FC7008M E3FCDN22OMS OMRON Inox Reflex 300mm NPN M12 Connector

E3FC-DN22

E3FC7008M

E3FCDN22OMS

OMRON

1 Pcs.

Inox Reflex 300mm NPN M12 Connector Photoelectric sensor, M18 threaded barrel, stainless steel, red LED, diffuse, 300 mm, NPN, Light-ON/Dark-ON, M12 connector

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3FC-DN22 photoelectric sensor is deployed in automated manufacturing lines to reliably detect the presence or position of components without physical contact. These optical sensing devices are essential for sorting, counting, and safety gating across various production environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCylindrical axialSensing methodDiffuse reflectiveSensing distance300 mmSetting methodManual adjustmentConnection methodConnector M12Output typeNPNOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingStainless steelThread sizeM18Product Length (unpacked)48 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K
