View larger
Images are for illustrative purposes only. Please refer to data sheet for details

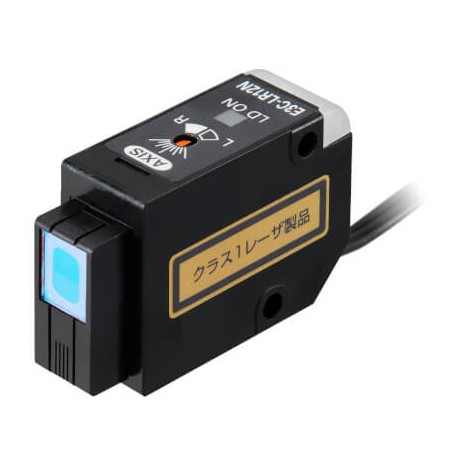

E3C-LR12N 2M E3C 2059C E3CLR12N2M OMRON Laser sensor head, coaxial retro-reflective, 7 m, 2 mm spot diameter..
E3C-LR12N 2M
E3C 2059C
E3CLR12N2M
OMRON
1 Pcs.
Laser sensor head, coaxial retro-reflective, 7 m, 2 mm spot diameter, fixed spot, 2 m cable
Automation > Retroreflective photoelectric sensor
E3C-LDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboidSensing methodCoaxial retro-reflectiveSensing distance7000 mmSensing distance (min.)0 mmSetting methodTeach-InConnection methodCableCable length2 mResponse time0.08 msMaterial housingABSType of lightLaser diode, red lightLaser class1Spot size2 mmPower supply voltage12-24 VFeaturesFixed spot, High precision positioning & detection, M.S.R.
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP40 |
| Material of optical surface (EF004134) | Glass |
| Type of interface for safety communication (EF003956) | Other |
| Housing material (EF001596) | Plastic |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Class 1 |
| Setting procedure (EF003994) | Teach-In |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable with connector |
| Type of light (EF004029) | Laser diode, red light |
| Type of switching output (EF003962) | PNP/NPN |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With communication interface AS-Interface (EF007306) | No |
| With restart blockage (EF004054) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| With communication interface DeviceNet (EF007308) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface RS-422 (EF007313) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With other analogue output (EF007485) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Height of sensor (EF007283) | 25 mm |
| Switching frequency (EF003587) | 6.5 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 7000 mm |
| Wavelength of the sensor (EF004132) | 650 nm |
| Response time (EF004094) | 0.08 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Min. reflector distance (EF004046) | 0 mm |
| Width sensor (EF007094) | 13.2 mm |
| Rated switching distance (EF008289) | 7000 mm |
| Length of sensor (EF007334) | 39 mm |
| Rated control supply voltage DC (EF003980) | 12 V |
| Ambient temperature (EF002386) | 10 °C |
