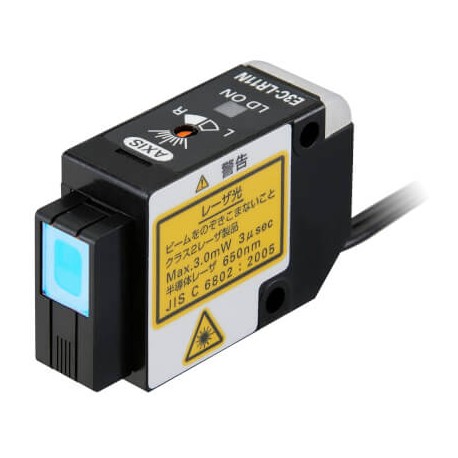

OMRON E3C-LR11N 2M E3C-LR11N 2M E3C 2058E E3CLR11N2M OMRON Laser sensor head, coaxial retro-reflective, 7 m, variable spot, 2 m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3C-LR11N 2M E3C 2058E E3CLR11N2M OMRON Laser sensor head, coaxial retro-reflective, 7 m, variable spot, 2 m..

E3C-LR11N 2M

E3C 2058E

E3CLR11N2M

OMRON

1 Pcs.

Laser sensor head, coaxial retro-reflective, 7 m, variable spot, 2 m cable

Automation > Retroreflective photoelectric sensor
E3C-LDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing targeted laser beams for high-accuracy alignment and detection, the Omron E3C-LR11N 2M sensor head handles demanding industrial measurement tasks. Laser sensors are standard in automated production lines where precise positioning or detection of small targets is critical. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Material of optical surface (EF004134): Glass
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 2
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable with connector
  • Type of light (EF004029): Laser diode, red light
  • Type of switching output (EF003962): PNP/NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodCoaxial retro-reflectiveSensing distance7000 mmSensing distance (min.)0 mmSetting methodTeach-InConnection methodCableCable length2 mResponse time0.08 msMaterial housingABSType of lightLaser diode, red lightLaser class2Spot size0.8 mm at 1 mPower supply voltage12-24 VFeaturesHigh precision positioning & detection, M.S.R.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
