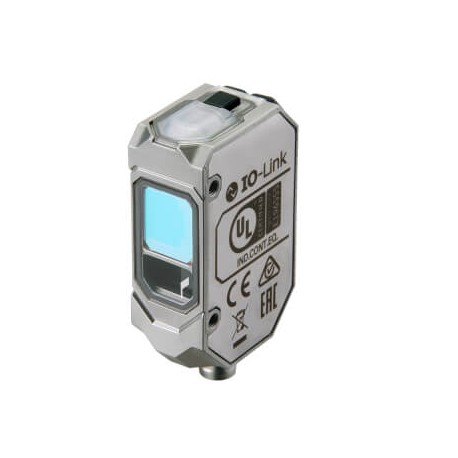

OMRON E3AS-HL500LMT M3 E3AS-HL500LMT M3 E3AS0134E E3ASHL500LMTM3OMS OMRON Photoelectric sensor, rectangular housing, stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3AS-HL500LMT M3 E3AS0134E E3ASHL500LMTM3OMS OMRON Photoelectric sensor, rectangular housing, stainless stee..

E3AS-HL500LMT M3

E3AS0134E

E3ASHL500LMTM3OMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/ Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, 10-30 VDC, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4-pin

Automation > Light scanner with background masking

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number E3AS-HL500LMT M3 is a stainless steel photoelectric sensor built for sanitary and harsh industrial environments requiring reliable non-contact detection. Optical sensing units are critical across manufacturing operations for monitoring material flow, part orientation, and machine synchronization.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance500 mmSensing distance (min.)35 mmSetting methodIO-Link, Teach-InConnection methodConnector M8 - 4 pinOutput typeIO-Link, PNPOperation modeDark-ON, Light-ONIO-Link baud rateCOM3 (230.4 kbps)Response time1.5 msMaterial housingStainless steelProduct Width (unpacked)15.5 mmProduct Height (unpacked)48.6 mmProduct Depth (unpacked)28.9 mmType of lightLaser diode, red lightLaser class1Spot size18 mm x 1.5 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP67G/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
