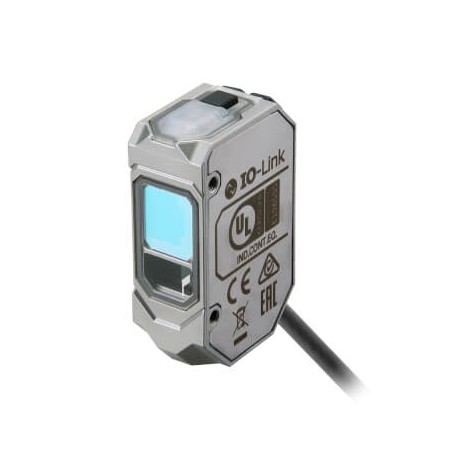

OMRON E3AS-HL500LMN 2M E3AS-HL500LMN 2M E3AS0124H E3ASHL500LMN2MOMS OMRON Photoelectric sensor, rectangular housing, stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3AS-HL500LMN 2M E3AS0124H E3ASHL500LMN2MOMS OMRON Photoelectric sensor, rectangular housing, stainless stee..

E3AS-HL500LMN 2M

E3AS0124H

E3ASHL500LMN2MOMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, 10-30 VDC, NPN, Light-ON/

Automation > Light scanner with background masking

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3AS-HL500LMN 2M photoelectric sensor utilizes advanced laser optics to deliver reliable non-contact detection across automated processing and material handling systems. Industrial optical switches of this nature ensure precise object sensing and quality control in fast-paced production lines.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance500 mmSensing distance (min.)35 mmSetting methodTeach-InConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time1.5 msMaterial housingStainless steelProduct Width (unpacked)15.5 mmProduct Height (unpacked)48.6 mmProduct Depth (unpacked)30.4 mmType of lightLaser diode, red lightLaser class1Spot size18 mm x 1.5 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP67G/IP69K
