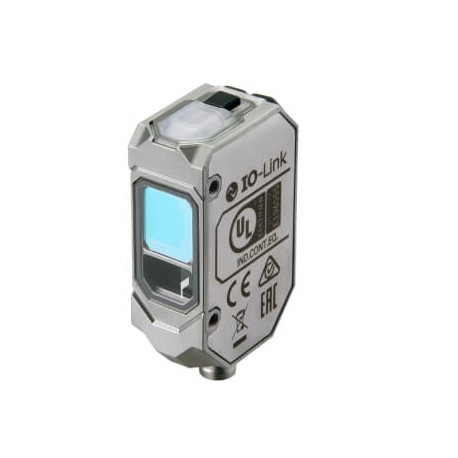

OMRON E3AS-HL150MN M3 E3AS-HL150MN M3 E3AS0138H E3ASHL150MNM3OMS OMRON Photoelectric sensor, rectangular housing, stainless steel,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3AS-HL150MN M3 E3AS0138H E3ASHL150MNM3OMS OMRON Photoelectric sensor, rectangular housing, stainless steel,..

E3AS-HL150MN M3

E3AS0138H

E3ASHL150MNM3OMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, 10-30 VDC, NPN, Light-ON/

Automation > Light scanner with background masking

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron photoelectric sensor, designated as part number E3AS-HL150MN M3, is an industrial sensing component built to detect objects accurately across varying target surfaces in automated machinery. Its enclosed cuboid metal housing protects internal optics for reliable performance in demanding factory environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance150 mmSensing distance (min.)35 mmSetting methodTeach-InConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1.5 msMaterial housingStainless steelProduct Width (unpacked)15.5 mmProduct Height (unpacked)48.6 mmProduct Depth (unpacked)28.9 mmType of lightLaser diode, red lightLaser class1Spot size2.5 mm x 1.3 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP67G/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
