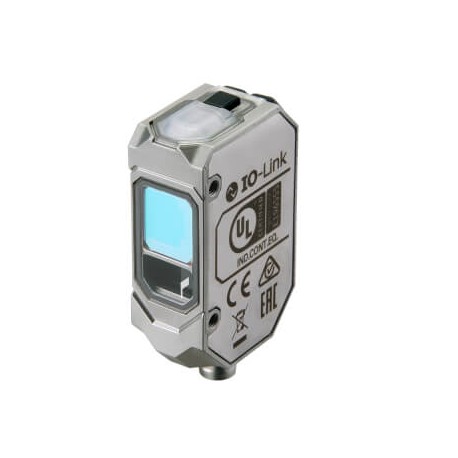

OMRON E3AS-HL150LMN M3 E3AS-HL150LMN M3 E3AS0150G E3ASHL150LMNM3OMS OMRON Photoelectric sensor, rectangular housing, stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3AS-HL150LMN M3 E3AS0150G E3ASHL150LMNM3OMS OMRON Photoelectric sensor, rectangular housing, stainless stee..

E3AS-HL150LMN M3

E3AS0150G

E3ASHL150LMNM3OMS

OMRON

1 Pcs.

Photoelectric sensor, rectangular housing, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, 10-30 VDC, NPN, Light-ON/

Automation > Light scanner with background masking

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized extensively in automated industrial machinery, the Omron E3AS-HL150LMN M3 rectangular photoelectric sensor provides accurate optical distance and presence detection for quality control and sorting applications. Units of this class monitor production processes by triggering switching outputs when targets break or reflect the emitted beam within dynamic factory settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 1
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Laser diode, red light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance150 mmSensing distance (min.)35 mmSetting methodTeach-InConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1.5 msMaterial housingStainless steelProduct Width (unpacked)15.5 mmProduct Height (unpacked)48.6 mmProduct Depth (unpacked)28.9 mmType of lightLaser diode, red lightLaser class1Spot size8 mm x 1.3 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP67G/IP69K
