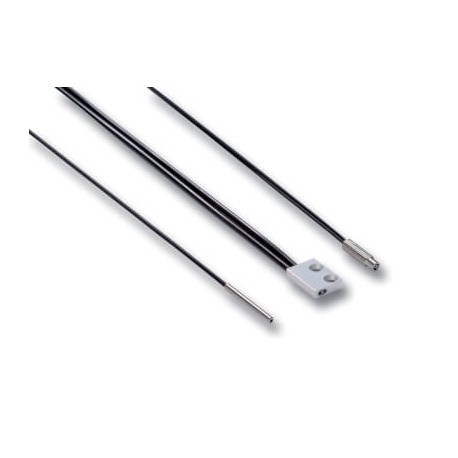

E32-T12B 10M E32 2163D E32T12B10M OMRON Fiber optic sensor, through-beam, 3 mm dia head, robot application, ..
E32-T12B 10M
E32 2163D
E32T12B10M
OMRON
1 Pcs.
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron E32-T12B 10M through-beam fiber optic sensor is deployed in industrial automation networks to monitor material flow, confirm component presence, and trigger automated processes. Through-beam optical arrangements project a continuous light beam across a gap to a separate receiver, ensuring high-accuracy detection for moving parts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- M3: 400
- dia 2 mm: 400
- dia 1.5 mm: 400
- M4: 140
- M3: 60
- Permissible bending radius: R4
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: PVC coating
- Degree of protection: IEC 60529 IP67
More info
▲Robot application fiber sensor heads
For applications on frequently or fast moving parts, the robot fibers reduce the risk of fiber breakage with a guaranteed operational life of more than 1 million bending cycles.
- Free moving multicore fibers for > 1 mio bending cycles
- Square shapes for easy surface installation
- Cylindrical sizes from dia 1.5 mm to M6
Tested durability

Guaranteed more than 1 mio bending operations.
Fiber breakage protection

Free moving fiber cores prevent fiber breakage and light intensity loss when the fiber is bent.
Sensing distance (in mm)1 | ||||
|---|---|---|---|---|
