OMRON E32-G16 2M E32-G16 2M E32 0018A E32G162M OMRON Fiber Horseshoe 10mm cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-G16 2M E32 0018A E32G162M OMRON Fiber Horseshoe 10mm cable 2m

E32-G16 2M

E32 0018A

E32G162M

OMRON

1 Pcs.

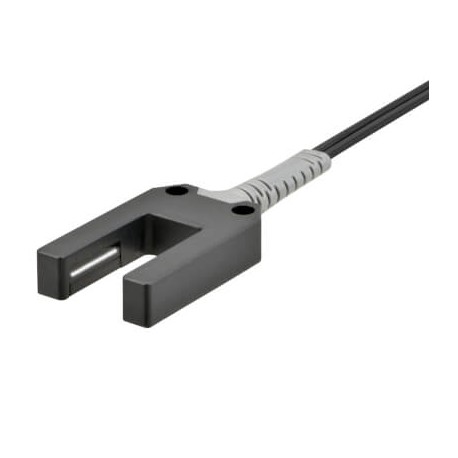

Fiber Horseshoe 10mm cable 2m Fiber optic sensor head, through-beam, 10mm slot type, 10 mm area detection, R5 fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E32-G16 2M is a horseshoe-style fiber optic sensor head engineered for specialized edge and gap sensing applications. Automation engineers frequently implement groove-style optical sensors in web handling, loop control, and continuous material processing lines to track films or sheets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 20 mm
  • Height amplifier (EF007284): 7 mm
  • Length amplifier (EF007335): 32 mm
  • Width amplifier (EF007095): 10 mm
  • Ambient temperature (EF002386): -40 °C

More info

▲
Sensing methodThrough-beamShapeSquareApplicationArea detectionTemperature range-40-70 °CSensing distance10 mmCable length2 mBending radius5 mmFree cutMaterial corePlasticDegree of protection (IP)IP50Sensing surface orientationTop-viewMaterial sheathPolyethylene
