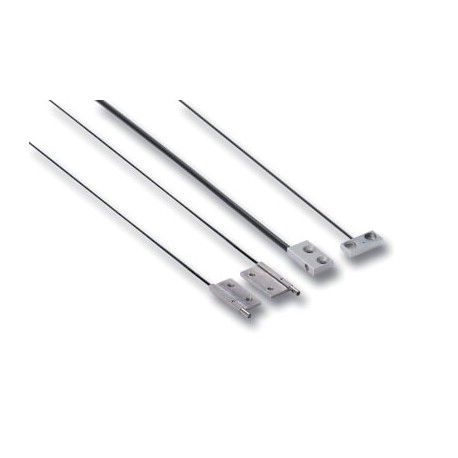

OMRON E32-ETS14R 5M E32-ETS14R 5M E32 9425R E32ETS14R5MBYOMN OMRON Barrier square 15x9mm High Flexibility Cable 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-ETS14R 5M E32 9425R E32ETS14R5MBYOMN OMRON Barrier square 15x9mm High Flexibility Cable 5m

E32-ETS14R 5M

E32 9425R

E32ETS14R5MBYOMN

OMRON

1 Pcs.

Barrier square 15x9mm High Flexibility Cable 5m Square barrier 15x9mm High Flexibility Cable 5m

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-flexibility square barrier fiber optic cable provides reliable through-beam sensing in dynamic industrial machinery where moving parts require flexible routing. Such optical assemblies link to remote amplifiers to detect parts accurately in high-speed packaging and sorting equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Permissible bending radius: R25
  • Cut to length: Yes
  • Ambient temperature: -40°C to 70°C
  • Material: Head
  • Fiber: PMMA
  • Sheath: Polyethylene coating
  • Degree of protection: IEC 60529 IP67

More info

▲
Features

Square shape fiber sensor heads

The fiber heads in square shaped housing provide fast and easy installation on flat surfaces.

  • Models with sensing direction in X, Y or Z axis
  • 3 or 4mm thick housings for minimal height requirement
  • Standard or high-flex fibers

Simple mounting

simple mounting 02 prod

Space saving and fast mounting without additional brackets

High production accuracy

high production accuracy 02 prod

Precise positioning during manufacturing for 90° optics to achieve minimal tolerance variations in optical output axis angle.

Ordering information

Sensor type

Size in mm

(standard /
high-flex)

Sensing distance (in mm)1

Order code

Standard fiber

High-flex fiber

Standard fiber

High-flex fiber

E3X-HD

E3NX-FA

E3X-HD

E3NX-FA


15×8×3 /
15×10×4

1550

1550

1400

2100

E32-T15X 2M

E32-ETS10R 2M


15×8×3

950

1400

450

670

E32-T15Y 2M

E32-T15YR 2M


15×8×3 /
15×9×4

950

1400

1300

1800

E32-T15Z 2M

E32-ETS14R 2M


13×9×4

-

1300

1800

-

E32-ET15YR 2M


-

1300

1800

-

E32-ET15ZR 2M


15×10×3

600

900

350

520

E32-D15X 2M

E32-D15XR 2M


15×10×3

200

300

100

150

E32-D15Y 2M

E32-D15YR 2M


15×10×3 /
13×6×2.3

200

300

100

150

E32-D15Z 2M

E32-EDS24R 2M


24.5×10×3

-

1780

2600

-

E32-A03-1 2M

21×9×2

-

680

1000

-

E32-A04-1 2M

Specifications

Item

Standard

High flex

E32-_15

E32-A03_

E32-A04_

E32-E

E32-_15_R

Permissible bending radius

R25

R10

R1

Cut to length

Yes

Ambient temperature

-40°C to 70°C

Material

Head

Aluminium

Brass-nickel plated

Stainless steel

Aluminium

Fiber

PMMA

Sheath

Polyethylene coating

PVC coating

Degree of protection

IEC 60529 IP67

IEC 60529 IP50

IEC 60529 IP67


1.Sensing distance measured with Standard Mode


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
