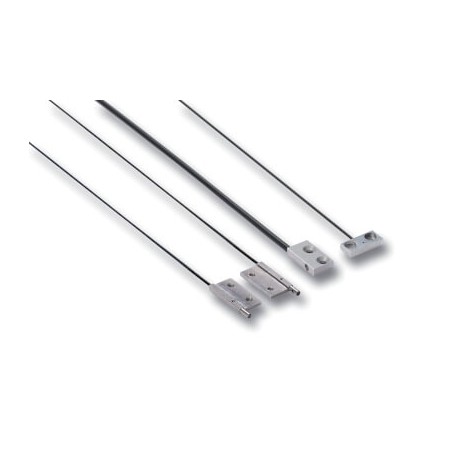

OMRON E32-ETS14R 2M E32-ETS14R 2M E32 9424M E32ETS14R2MBYOMN OMRON Barrier square 15x9mm High Flexibility

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

E32-ETS14R 2M E32 9424M E32ETS14R2MBYOMN OMRON Barrier square 15x9mm High Flexibility

Name: E32-ETS14R 2M E32 9424M E32ETS14R2MBYOMN OMRON Barrier square 15x9mm High Flexibility
Brand: OMRON
SKU: E32 9424M

Reference: E32-ETS14R 2M

Code: E32 9424M

Catalog Number: E32ETS14R2MBYOMN

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Barrier square 15x9mm High Flexibility Fiber optic sensor head, through-beam, square, flat-view, R1 flexible fiber, 2 m cable

Categories:
Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Features

Square shape fiber sensor heads

The fiber heads in square shaped housing provide fast and easy installation on flat surfaces.

Models with sensing direction in X, Y or Z axis
3 or 4mm thick housings for minimal height requirement
Standard or high-flex fibers

Simple mounting

Space saving and fast mounting without additional brackets

High production accuracy

Precise positioning during manufacturing for 90° optics to achieve minimal tolerance variations in optical output axis angle.

Ordering information

Sensor type	Size in mm (standard / high-flex)	Sensing distance (in mm)1				Order code
		Standard fiber		High-flex fiber		Standard fiber	High-flex fiber
		E3X-HD	E3NX-FA	E3X-HD	E3NX-FA	Standard fiber	High-flex fiber
	15×8×3 / 15×10×4	1550	1550	1400	2100	E32-T15X 2M	E32-ETS10R 2M
	15×8×3	950	1400	450	670	E32-T15Y 2M	E32-T15YR 2M
	15×8×3 / 15×9×4	950	1400	1300	1800	E32-T15Z 2M	E32-ETS14R 2M
	13×9×4	-		1300	1800	-	E32-ET15YR 2M
	13×9×4	-		1300	1800	-	E32-ET15ZR 2M
	15×10×3	600	900	350	520	E32-D15X 2M	E32-D15XR 2M
	15×10×3	200	300	100	150	E32-D15Y 2M	E32-D15YR 2M
	15×10×3 / 13×6×2.3	200	300	100	150	E32-D15Z 2M	E32-EDS24R 2M
	15×10×3 / 13×6×2.3	200	300	100	150	E32-D15Z 2M	E32-EDS24R 2M	24.5×10×3	-	1780	2600	-	E32-A03-1 2M
21×9×2	-		680	1000	-	E32-A04-1 2M

Specifications

Item		Standard			High flex
Item		E32-_15	E32-A03_	E32-A04_	E32-E	E32-_15_R
Permissible bending radius		R25	R10		R1
Cut to length		Yes
Ambient temperature		-40°C to 70°C
Material	Head	Aluminium	Brass-nickel plated	Stainless steel	Aluminium
	Fiber	PMMA
	Sheath	Polyethylene coating				PVC coating
Degree of protection		IEC 60529 IP67	IEC 60529 IP50		IEC 60529 IP67

1.Sensing distance measured with Standard Mode
