OMRON E32-D21R 2M E32-D21R 2M E32 1459M E32D21R2M,1 OMRON Slr General Threaded M3 Flexible View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-D21R 2M E32 1459M E32D21R2M,1 OMRON Slr General Threaded M3 Flexible

E32-D21R 2M

E32 1459M

E32D21R2M.1

OMRON

1 Pcs.

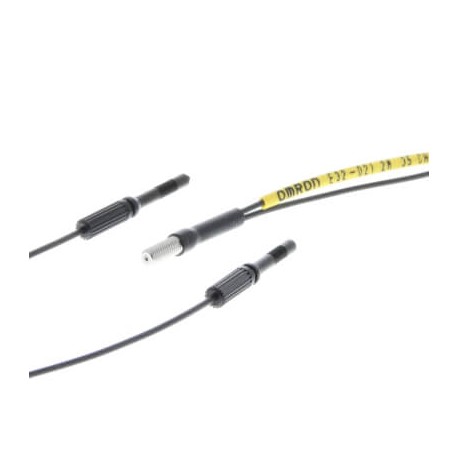

Slr General Threaded M3 Flexible Fiber optic sensor head, diffuse, M3 cylindirical axial, R1 flexible fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Threaded photoelectric sensor cables serve as flexible optical sensing extensions in tight machine spaces, allowing automated equipment to accurately detect small parts and monitor conveyor processes. The Omron E32-D21R 2M operates within industrial automation architectures to relay precise optical signals back to compatible control units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 220 mm
  • Height amplifier (EF007284): 5.5 mm
  • Length amplifier (EF007335): 11 mm
  • Diameter sensor (EF007111): 2.5 mm

More info

▲
Sensing methodDiffuse reflectiveShapeThreadedSizeM3ApplicationObject detectionFeaturesFlexible fiberTemperature range-40-70 °CSensing distance210 mmCable length2 mBending radius1 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationTop-viewMaterial sheathPolyethylene
