View larger
Images are for illustrative purposes only. Please refer to data sheet for details

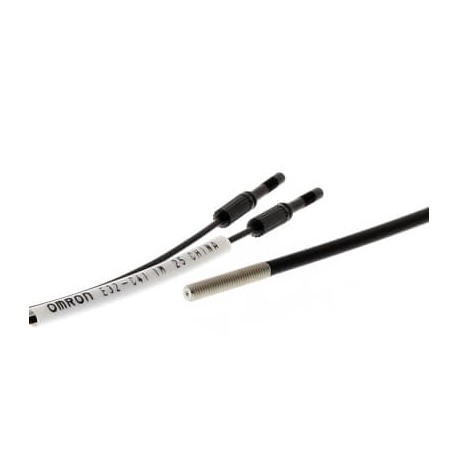

E32-C41 1M E32 1308R E32C411M,1 OMRON Reflex diameter M3 stainless Steel
E32-C41 1M
E32 1308R
E32C411M.1
OMRON
1 Pcs.
Reflex diameter M3 stainless Steel
Fiber optic sensor head, diffuse, M3 cylindrical axial, to be used with lens, R25 fiber, 1 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sensing methodDiffuse reflectiveShapeThreadedSizeM3ApplicationObject detectionFeaturesSmall spot with lensTemperature range-40-70 °CSensing distance17 mmCable length1 mBending radius25 mmFree cutMaterial corePlasticSensing surface orientationTop-viewMaterial sheathPolyethylene
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC/DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Setting procedure (EF003994) | Manual adjustment |
| Indication (EF000350) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Laser diode, red light |
| Type of switching output (EF003962) | Other |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Nominal operating distance (EF004059) | 20 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height amplifier (EF007284) | 5 mm |
| Length amplifier (EF007335) | 16.5 mm |
| Diameter sensor (EF007111) | 5 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Width amplifier (EF007095) | 10 mm |
| Ambient temperature (EF002386) | -40 °C |
