View larger
Images are for illustrative purposes only. Please refer to data sheet for details

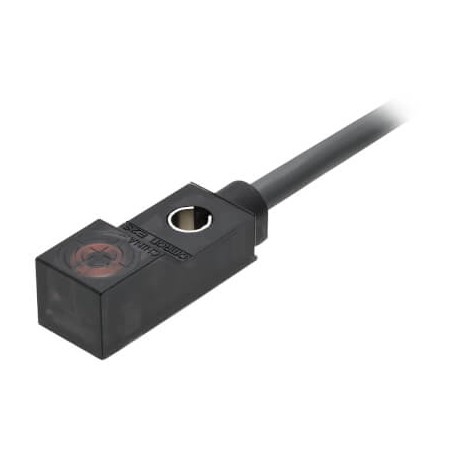

E2S-W23-R 1M E2S 7113G E2SW23R1MOMS OMRON Miniature rectangular inductor, front detection, unshielded, 2.5 m..
E2S-W23-R 1M
E2S 7113G
E2SW23R1MOMS
OMRON
1 Pcs.
Miniature rectangular inductor, front detection, unshielded, 2.5 mm, NPN, NO, 1 m pre-wired robotic cable.
Miniature rectangular Inductive, top surface detection, unshielded, 2.5mm, NPN, NO, 1 m prewired robotic cable
Automation > Inductive proximity switch
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size8 x 8 x 23 mmMounting typeNon-flushSensing distance2.5 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingPolyacrylateCable specificationsPVCCable length1 mOverall length of sensor23 mmFeaturesFlexible cable
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Mechanical mounting condition for sensor (EF004041) | Not flat |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Normally open contact |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Plastic |
| Type of switching output (EF003962) | NPN |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 7.4 mm |
| Height of sensor (EF007283) | 18.8 mm |
| Switching distance (EF003647) | 2.5 mm |
| Length of sensor (EF007334) | 7.4 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 12 V |
