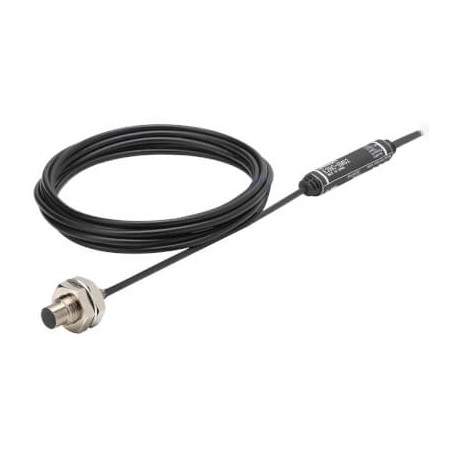

OMRON E2NC-EM02 E2NC-EM02 E2NC0017M E2NCEM02 OMRON Sensor head, shielded, M10 housing, sensing distance 2 mm, repeat accurac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2NC-EM02 E2NC0017M E2NCEM02 OMRON Sensor head, shielded, M10 housing, sensing distance 2 mm, repeat accurac..

E2NC-EM02

E2NC0017M

E2NCEM02

OMRON

1 Pcs.

Sensor head, shielded, M10 housing, sensing distance 2 mm, repeat accuracy 2 µm, 2.6 m standard cable

Automation > Inductive proximity switch
Other Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A shielded M10 sensor head, identified as Omron part number E2NC-EM02, interfaces with an amplifier unit to detect metallic objects in tight industrial automation spaces. These component setups allow precise non-contact measurement and position sensing where standard standalone sensors cannot fit.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mechanical mounting condition for sensor (EF004041): Concise
  • Housing material (EF001596): Metal
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable with connector
  • Type of switching output (EF003962): PNP/NPN
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Switching frequency (EF003587): 3300 Hz
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 10 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM10Mounting typeFlushConnection methodSystem connectorMaterial housingBrassCable specificationsPVCCable length2.6 mOverall length of sensor22 mmThread length16.6 mmRepeat accuracy2 µmSensing distance2 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
