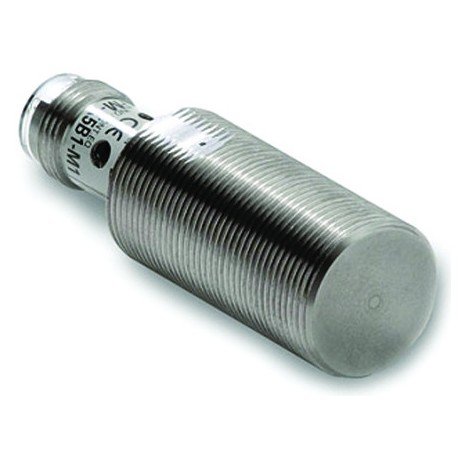

OMRON E2FM-X5C1-M1 E2FM-X5C1-M1 E2FM0038M E2FMX5C1M1 OMRON Proximity sensor, inductive, stainless steel face & body, long body,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2FM-X5C1-M1 E2FM0038M E2FMX5C1M1 OMRON Proximity sensor, inductive, stainless steel face & body, long body,..

E2FM-X5C1-M1

E2FM0038M

E2FMX5C1M1

OMRON

1 Pcs.

Proximity sensor, inductive, stainless steel face & body, long body, M18, shielded, 5mm, DC, 3-wire, NPN-NO, M12 plug-in

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Proximity sensor, inductive, stainless steel face & body, long body,.. (part number: E2FM-X5C1-M1) provides heavy-duty metal sensing for harsh industrial environments requiring rugged construction. Inductive proximity sensors are routinely utilized in manufacturing and process control to verify positioning, detect moving parts, and synchronize automated systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Flush
  • Sensing distance: 5 mm
  • Output type: NPN
  • Operation mode: NO
  • Connection method: Connector M12
  • Material housing: Stainless steel
  • Overall length: 56 mm
  • Thread length: 36 mm
  • Features: Metal sensing face
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12

More info

▲

Specifications

SizeM18
Mounting typeFlush
Sensing distance5 mm
Output typeNPN
Operation modeNO
Connection methodConnector M12
Material housingStainless steel
Cable specifications-
Overall length56 mm
Thread length36 mm
FeaturesMetal sensing face
Polarity

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
