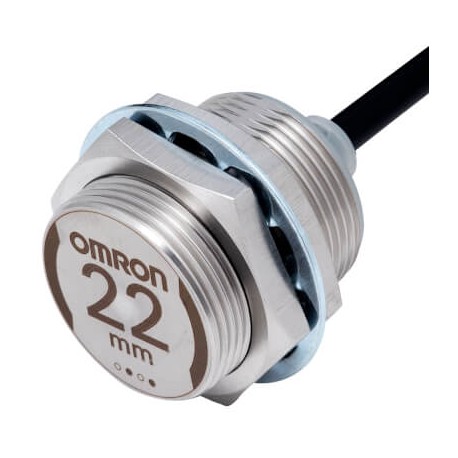

OMRON E2EW-X22B230 2M E2EW-X22B230 2M E2EW0319R E2EWX22B2302MOMS OMRON Proximity sensor, inductive, full metal stainless steel 303.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-X22B230 2M E2EW0319R E2EWX22B2302MOMS OMRON Proximity sensor, inductive, full metal stainless steel 303..

E2EW-X22B230 2M

E2EW0319R

E2EWX22B2302MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, full metal stainless steel 303 M30, shielded, 22 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A full metal stainless steel proximity sensor, specifically the Omron E2EW-X22B230 2M, provides dependable inductive detection of metallic components in severe industrial environments subject to heavy mechanical or chemical exposure. Such sensors are commonly deployed on automated production lines and transfer systems to verify part placement and machine travel limits.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Interference resistance to magnetic fields (EF008275): Immune against magnetic DC- and AC-field
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 30 mm
  • Switching distance (EF003647): 22 mm

More info

▲
SizeM30Mounting typeQuasi-flushSensing distance22 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor41.5 mmThread length30 mmFeaturesMetal sensing faceDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
