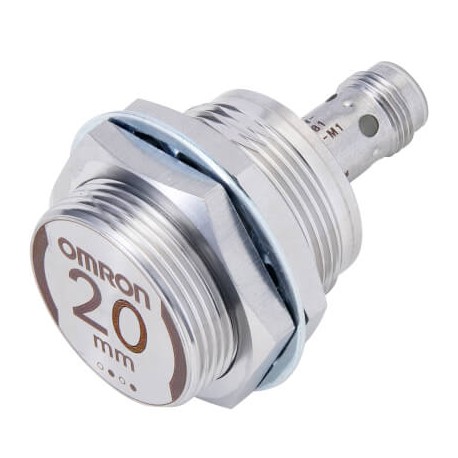

OMRON E2EW-X20B230-M1 E2EW-X20B230-M1 E2EW0314H 702376 OMRON Proximity Sensor, Inductive, Full Stainless Steel 303, M12, Shielded,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-X20B230-M1 E2EW0314H 702376 OMRON Proximity Sensor, Inductive, Full Stainless Steel 303, M12, Shielded,..

E2EW-X20B230-M1

E2EW0314H

E2EWX20B230M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, full metal stainless steel 303, M30, shielded, 20 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2EW-X20B230-M1 Proximity Sensor, Inductive, Full Stainless Steel 303, M12, Shielded,.. detects the presence of metallic objects without physical contact, commonly used in automated assembly lines and machine tooling to monitor positioning, counting, and limit detection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Flush
  • Sensing distance: 20 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Material housing: Stainless steel
  • Overall length: 54.4 mm
  • Thread length: 28 mm
  • Features: Metal sensing face
  • Degree of protection (IP): IP67
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact

More info

▲

Specifications

SizeM30
Mounting typeFlush
Sensing distance20 mm
Output typePNP
Operation modeNC
Connection methodConnector M12
Material housingStainless steel
Cable specifications-
Overall length54.4 mm
Thread length28 mm
FeaturesMetal sensing face
Degree of protection (IP)IP67
