View larger
Images are for illustrative purposes only. Please refer to data sheet for details

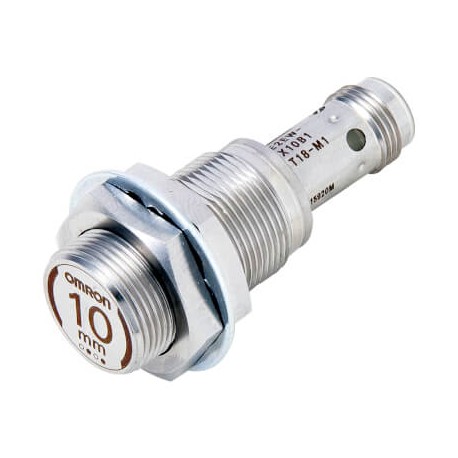

E2EW-X10B3T18-M1 E2EW0187M 702367 OMRON Proximity sensor, inductive, nickel-brass long body, M18, shielded, ..
E2EW-X10B3T18-M1
E2EW0187M
E2EWX10B3T18M1OMS
OMRON
1 Pcs.
Proximity sensor, inductive, full metal stainless steel 303, M18, shielded, 10 mm, DC, 3-wire, PNP NO+NC, IO-Link COM3, M12 connector
Automation > Inductive proximity switch
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | M18 |
| Mounting type | Flush |
| Sensing distance | 10 mm |
| Output type | IO-Link, PNP |
| Operation mode | NO + NC |
| Connection method | Connector M12 |
| Material housing | Stainless steel |
| Cable specifications | - |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Overall length of sensor | 54.4 mm |
| Thread length | 28 mm |
| Features | Metal sensing face |
| Degree of protection (IP) | IP67 |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Mechanical mounting condition for sensor (EF004041) | Concise |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Change-over contact |
| Type of electric connection (EF003961) | Connector M12 |
| Type of interface (EF006977) | Other |
| SIL according to IEC 61508 (EF009889) | None |
| Housing material (EF001596) | Metal |
| Type of switching output (EF003962) | PNP |
| Interference resistance to magnetic fields (EF008275) | Immune against magnetic DC- and AC-field |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| Compression-resistant (EF007106) | No |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Diameter sensor (EF007111) | 18 mm |
| Switching distance (EF003647) | 10 mm |
| Length of sensor (EF007334) | 54.4 mm |
| Switching frequency (EF003587) | 2 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Supply voltage (EF004127) | 10 V |
| Rated control supply voltage DC (EF003980) | 10 V |
