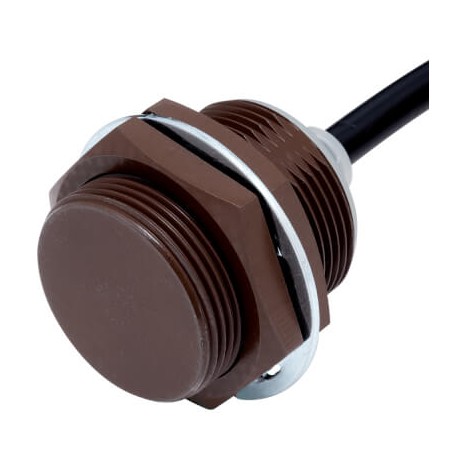

OMRON E2EW-QX22C230 2M E2EW-QX22C230 2M E2EW0758E E2EWQX22C2302MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-QX22C230 2M E2EW0758E E2EWQX22C2302MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma..

E2EW-QX22C230 2M

E2EW0758E

E2EWQX22C2302MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M30, shielded, 22 mm, DC, 3-wire, NPN NC, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2EW-QX22C230 2M proximity sensor, inductive detects metallic objects without physical contact in automated manufacturing lines and machinery. Industrial proximity switches monitor position, count items, and manage cycle sequences within harsh factory environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Interference resistance to magnetic fields (EF008275): Immune against magnetic DC- and AC-field
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 30 mm
  • Switching distance (EF003647): 22 mm

More info

▲
SizeM30Mounting typeQuasi-flushSensing distance22 mmOutput typeNPNOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor41.5 mmThread length30 mmFeaturesFluoroplastic coating, Metal sensing faceDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
