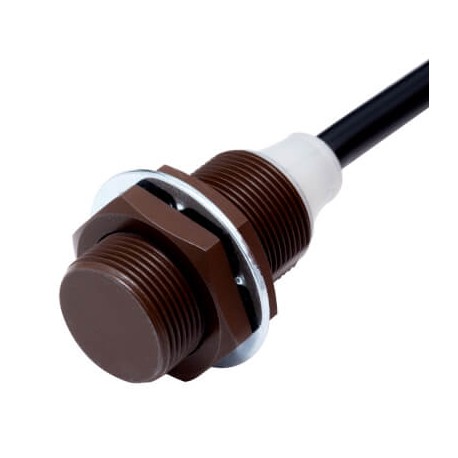

OMRON E2EW-QX12C218 2M E2EW-QX12C218 2M E2EW0630R E2EWQX12C2182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-QX12C218 2M E2EW0630R E2EWQX12C2182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma..

E2EW-QX12C218 2M

E2EW0630R

E2EWQX12C2182MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 12 mm, DC, 3-wire, NPN NC, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2EW-QX12C218 2M proximity sensor, inductive, fluororesin coating (base ma.. serves as an essential automation component for detecting the presence of metal workpieces in material handling and processing systems. Such sensors offer dependable switching actions without physical impact on the target material. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Interference resistance to magnetic fields (EF008275): Immune against magnetic DC- and AC-field
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 12 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance12 mmOutput typeNPNOperation modeNCConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor41.5 mmThread length30 mmFeaturesFluoroplastic coating, Metal sensing faceDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
