OMRON E2EW-QX12C118 2M E2EW-QX12C118 2M E2EW0629E E2EWQX12C1182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-QX12C118 2M E2EW0629E E2EWQX12C1182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma..

E2EW-QX12C118 2M

E2EW0629E

E2EWQX12C1182MOMS

OMRON

1 Pcs.

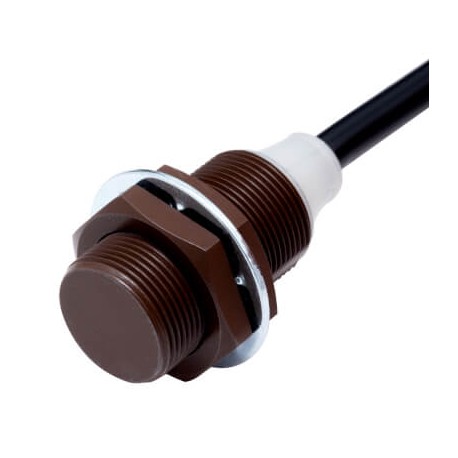

Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 12 mm, DC, 3-wire, NPN NO, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron proximity sensor, inductive, fluororesin coating (base ma.. (E2EW-QX12C118 2M) is commonly deployed in automated industrial systems to detect metallic objects without physical contact. These sensors utilize electromagnetic fields to monitor position, speed, or presence on high-speed production lines and machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Interference resistance to magnetic fields (EF008275): Immune against magnetic DC- and AC-field
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 12 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance12 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor41.5 mmThread length30 mmFeaturesFluoroplastic coating, Metal sensing faceDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
