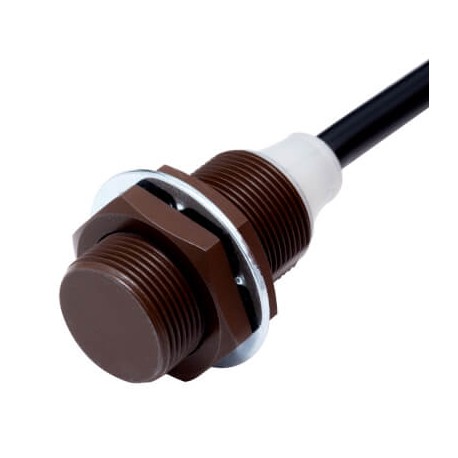

OMRON E2EW-QX12B218 2M E2EW-QX12B218 2M E2EW0575B E2EWQX12B2182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EW-QX12B218 2M E2EW0575B E2EWQX12B2182MOMS OMRON Proximity sensor, inductive, fluororesin coating (base ma..

E2EW-QX12B218 2M

E2EW0575B

E2EWQX12B2182MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, fluororesin coating (base material: SUS 303) M18, shielded, 12 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2EW-QX12B218 2M is an inductive proximity sensor engineered for reliable non-contact metal detection in demanding industrial environments. Proximity sensors are commonly utilized throughout automated assembly lines, material handling systems, and machinery to monitor positioning, count parts, or detect the presence of metallic components without physical wear. This unit features a robust fluororesin coating and stainless steel housing to withstand harsh operational settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Quasi-flush
  • Sensing distance: 12 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Cable
  • Material housing: Stainless steel
  • Cable specifications: PVC
  • Cable length: 2 m
  • Overall length of sensor: 41.5 mm
  • Thread length: 30 mm
  • Features: Fluoroplastic coating, Metal sensing face
  • Degree of protection (IP): IP67
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat

More info

▲

Specifications

SizeM18
Mounting typeQuasi-flush
Sensing distance12 mm
Output typePNP
Operation modeNC
Connection methodCable
Material housingStainless steel
Cable specificationsPVC
Cable length2 m
Overall length of sensor41.5 mm
Thread length30 mm
FeaturesFluoroplastic coating, Metal sensing face
Degree of protection (IP)IP67
