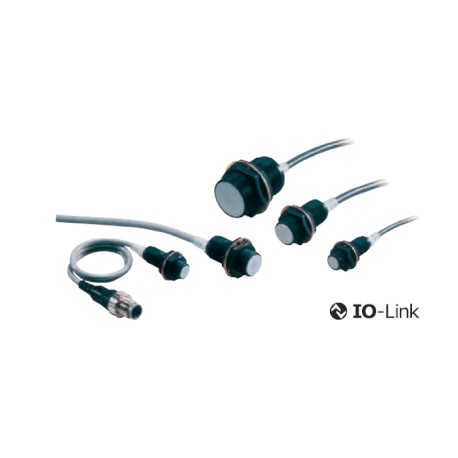

OMRON E2EQ-X7B4-IL2 5M E2EQ-X7B4-IL2 5M E2EQ7035R E2EQX7B4IL25MOMS OMRON Inductive soldering 3h cc Enr 7mm M18 NA/NC Cable 5m IO LI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EQ-X7B4-IL2 5M E2EQ7035R E2EQX7B4IL25MOMS OMRON Inductive soldering 3h cc Enr 7mm M18 NA/NC Cable 5m IO LI..

E2EQ-X7B4-IL2 5M

E2EQ7035R

E2EQX7B4IL25MOMS

OMRON

1 Pcs.

Inductive soldering 3h cc Enr 7mm M18 NA/NC Cable 5m IO LINK COM2

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

IO-Link spatter-resistant proximity sensors as the innovative solution to solve issues at welding application areas of industrial manufacturing sites

IO-Link spatter-resistant proximity sensors as the innovative solution to solve issues at welding application areas of industrial manufacturing sites

  • Downtime can be reduced through internal diagnostic functions
  • The sudden failure can be decreased by notifying, if objects being too far or too close
  • Maintenance operations are more efficient by identification of each sensor through the IO link network
  • Programmable operation of the sensor reduces the number of models required
  • The fluororesin coating provides exceptional spatter resistance in welding application areas of automotive or machine tools industries

Ordering information

DC 3-wire IO-Link models

Appearance

Sensing distance

Connection method

Cable specifications

Operation mode

Pin arrangement

Baud rate

Order code


M12

3 mm

Pre-wired models (2 m)

PVC

NO/NC
switching

−

COM2

E2EQ-X3B4-IL2 2M

COM3

E2EQ-X3B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2EQ-X3B4-M1TJ-IL2 0.3M

COM3

E2EQ-X3B4-M1TJ-IL3 0.3M

M18

7 mm

Pre-wired models (2 m)

−

COM2

E2EQ-X7B4-IL2 2M

COM3

E2EQ-X7B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2EQ-X7B4-M1TJ-IL2 0.3M

COM3

E2EQ-X7B4-M1TJ-IL3 0.3M

M30

10 mm

Pre-wired models (2 m)

−

COM2

E2EQ-X10B4-IL2 2M

COM3

E2EQ-X10B4-IL3 2M

M12 Pre-wired Smartclick connector models (0.3 m)

1: +V

3: 0 V

4: C/Q output

COM2

E2EQ-X10B4-M1TJ-IL2 0.3M

COM3

E2EQ-X10B4-M1TJ-IL3 0.3M

Specifications

DC 3-wire IO-Link models

Size

M12

M18

M30

Item

Model

E2EQ-X3B4-IL_

E2EQ-X7B4-IL_

E2EQ-X10B4-IL_

Sensing distance

3 mm ±10%

7 mm ±10%

10 mm ±10%

Set distance1

0 to 2.4 mm

0 to 5.6 mm

0 to 8 mm

Differential travel

10% max. of sensing distance

Response frequency2

1 kHz

0.5 kHz

0.4 kHz

Power supply voltage

10 to 30 VDC (including 10% ripple (p-p))

Current consumption

20 mA max.

Control output

Load current

100 mA max.

Residual voltage

2 V max. (Load current: 100 mA, Cable length: 2 m)

Indicators1

In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and stability indicator (green, lit)

In the IO-Link mode: Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals)

Operation mode

PNP NO/NC switching type (Factory setting: NO)

Degree of protection

IEC 60529 IP67, in-house standards: oil-resistant

Connection method

Pre-wired Models (Standard cable length: 2 m), Pre-wired Connector Models (Standard cable length: 0.3 m)

Materials

Case

Fluororesin coating (Base material: brass)

Sensing surface

Fluororesin

Clamping nuts

Fluororesin coating (Base material: brass)

Toothed washer

Zinc-plated iron

Main IO-Link functions

Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, and initial reset

Communication specifications

IO-Link specification

Ver 1.1

Baud rate

-IL3: COM3 (230.4 kbps), -IL2: COM2 (38.4 kbps)

Data length

PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2)

Minimum cycle time

-IL3 (COM3): 1 ms, -IL2 (COM2): 2.3 ms
1.In the Standard I/O mode (SIO mode), use the product in a range that the green stability indication lamp is lit. (Although the lamp is turned off when the object detected has approached excessively, the detection performance is stable.)
In the IO-Link mode, use the product in a range that the Byte1_bit4 for instability detection is zero. (Although the Byte1_bit5 for excessive proximity detection is one if the object detected has approached excessively, the detection performance is stable.) Please contact your OMRON sales representative regarding assignment of data.
2.The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
