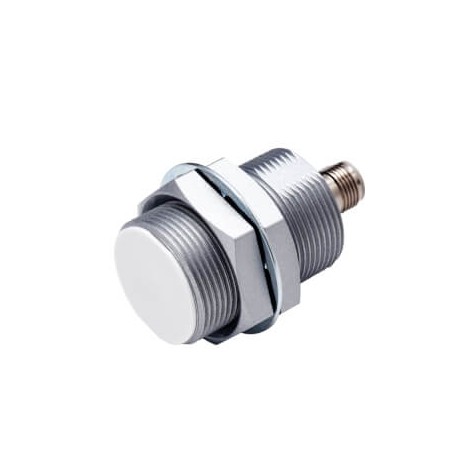

OMRON E2EQ-X22B1T30-M1 E2EQ-X22B1T30-M1 E2EQ7367F 688365 OMRON Proximity Sensor, Inductive, Fluororesin Coating (Base Material: Bro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EQ-X22B1T30-M1 E2EQ7367F 688365 OMRON Proximity Sensor, Inductive, Fluororesin Coating (Base Material: Bro..

E2EQ-X22B1T30-M1

E2EQ7367F

E2EQX22B1T30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, Fluororesin coating (base material: brass), M30, shielded, 22 mm, DC, 3-wire, PNP NO, IO-Link COM3, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2EQ-X22B1T30-M1 Proximity Sensor, Inductive, Fluororesin Coating (Base Material: Bro... is engineered for harsh industrial environments where exposure to chemicals or coolants requires robust protective coatings. It provides dependable detection of metallic targets for process automation and machinery safeguarding. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Features: Fluoroplastic coating
  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 22 mm
  • Overall length: 58 mm
  • Thread length: 39 mm
  • Material housing: Brass, PTFE coated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM3 (230.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

FeaturesFluoroplastic coating
SizeM30
Mounting typeQuasi-flush
Sensing distance22 mm
Overall length58 mm
Thread length39 mm
Material housingBrass, PTFE coated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link baud rateCOM3 (230.4 kbps)
Degree of protection (IP)IP67/IP69K
