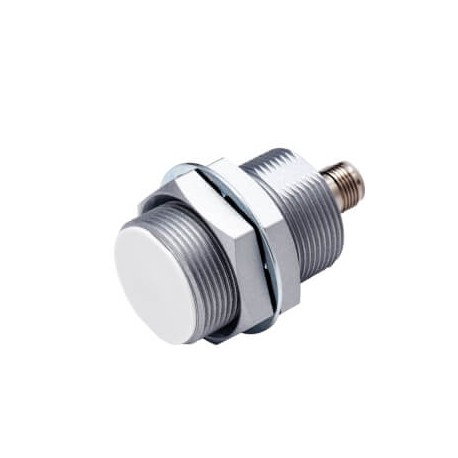

OMRON E2EQ-X22B1D30-M1 E2EQ-X22B1D30-M1 E2EQ7392G E2EQX22B1D30M1OMS OMRON Proximity sensor, inductive, Fluororesin coating (base ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EQ-X22B1D30-M1 E2EQ7392G E2EQX22B1D30M1OMS OMRON Proximity sensor, inductive, Fluororesin coating (base ma..

E2EQ-X22B1D30-M1

E2EQ7392G

E2EQX22B1D30M1OMS

OMRON

1 Pcs.

Proximity sensor, inductive, Fluororesin coating (base material: brass), M30, shielded, 22 mm, DC, 3-wire, PNP NO, IO-Link COM2, M12 connector

Automation > Inductive proximity switch
New E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed with protective coatings for harsh operational settings, the Omron E2EQ-X22B1D30-M1 proximity sensor, inductive identifies metallic elements without mechanical contact. Engineers deploy these devices in automated machinery to monitor operational limits, track assembly steps, and ensure consistent process flow.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Features: Fluoroplastic coating
  • Size: M30
  • Mounting type: Quasi-flush
  • Sensing distance: 22 mm
  • Overall length: 58 mm
  • Thread length: 39 mm
  • Material housing: Brass, PTFE coated
  • Output type: IO-Link, PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • IO-Link baud rate: COM2 (38.4 kbps)
  • Degree of protection (IP): IP67/IP69K
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target

More info

▲

Specifications

FeaturesFluoroplastic coating
SizeM30
Mounting typeQuasi-flush
Sensing distance22 mm
Overall length58 mm
Thread length39 mm
Material housingBrass, PTFE coated
Output typeIO-Link, PNP
Operation modeNO
Connection methodConnector M12
Cable specifications-
IO-Link baud rateCOM2 (38.4 kbps)
Degree of protection (IP)IP67/IP69K
